基于XGBoost和云模型的地质灾害易发性评价

doi: 10.16031/j.cnki.issn.1003-8035.202210041

辽宁省自然资源事务服务中心，辽宁沈阳　110044

详细信息

作者简介:
张威：张　威（1982-），男，辽宁丹东人，本科，高级工程师，主要从事自然灾害风险方面的研究。E-mail：5869365@qq.com

通讯作者:
胡舫瑞（1988-），男，辽宁营口人，硕士，工程师，主要从事地质灾害风险评价与管理方面的研究。E-mail：hufrcug@163.com

中图分类号: P642.22
计量
- 文章访问数: 730
- HTML全文浏览量: 164
- PDF下载量: 20
- 被引次数: 0
出版历程
- 收稿日期: 2022-09-25
- 录用日期: 2023-08-23
- 修回日期: 2023-07-17
- 网络出版日期: 2023-08-30

Susceptibility assessment of geological hazard based on XGBoost and cloud model

Liaoning Province Natural Resources Affairs Service Center, Shenyang, Liaoning　110044, China

摘要

摘要: 传统地质灾害易发性评价中，存在着易发性因子权重选取主观性强、因子分级具有随机性和模糊性的问题。采用单一评价模型只能对地质灾害的易发性进行定性评估，无法定量化评价。针对这一问题，文章基于改进集成算法（XGBoost）和云模型，在朝阳市189个灾害隐患点中选择坡度、气象条件、归一化植被指数、高程等12个易发性因子，通过XGBoost分类算法确定了易发性因子权重，拟合准确率为96.5%，达到了较高的精度。在此基础上利用云模型将因子分级的模糊性问题转化为定量问题，建立了朝阳市地质灾害易发性评价指标体系，进而评价地质灾害的易发性。以朝阳市大东山为评价单元对该评价体系进行验证。结果表明该评价单元的易发程度为高易发，与实际情况吻合。文章提出的方法可对地质灾害易发性评价提供参考。
- XGBoost /
- 易发性因子权重 /
- 云模型 /
- 易发性评价 /
- 地质灾害
Abstract: In the conventional process of geological hazard assessment, issues such as subjectivity in selecting susceptibility factor weights, randomness, and fuzziness in factor grading are prevalent. The application of a single assessment model can only provide qualitative evaluation of geological hazard susceptibility, lacking quantitative analysis. To overcome these challenges, this study employs an enhanced integrated algorithm (XGBoost) and cloud model. Among 189 disaster potential points in Chaoyang City, twelve susceptibility factors including slope, meteorological conditions, vegetation coverage and elevation were selected. The XGBoost classification algorithm was used to determine susceptibility factor weights. The results showed that the algorithm classification achieved high performance with fitting accuracy of 96.5%. On this basis, the cloud model was employed to transform the fuzzy factor grading into a quantitative problem, establishing a susceptibility evaluation index system for geological hazards in Chaoyang City, thereby assessing their susceptibility. To validate the evaluation index system, the Dadongshan landslide in Chaoyang City was selected as the assessment unit. Results indicate a high susceptibility level for this evaluation unit, consistent with actual conditions. The methodology proposed in this study is promising and can offers reference for evaluating geological hazard susceptibility.
- XGBoost /
- susceptibility factor weights /
- cloud model /
- susceptibility assessment /
- geological disaster

HTML全文

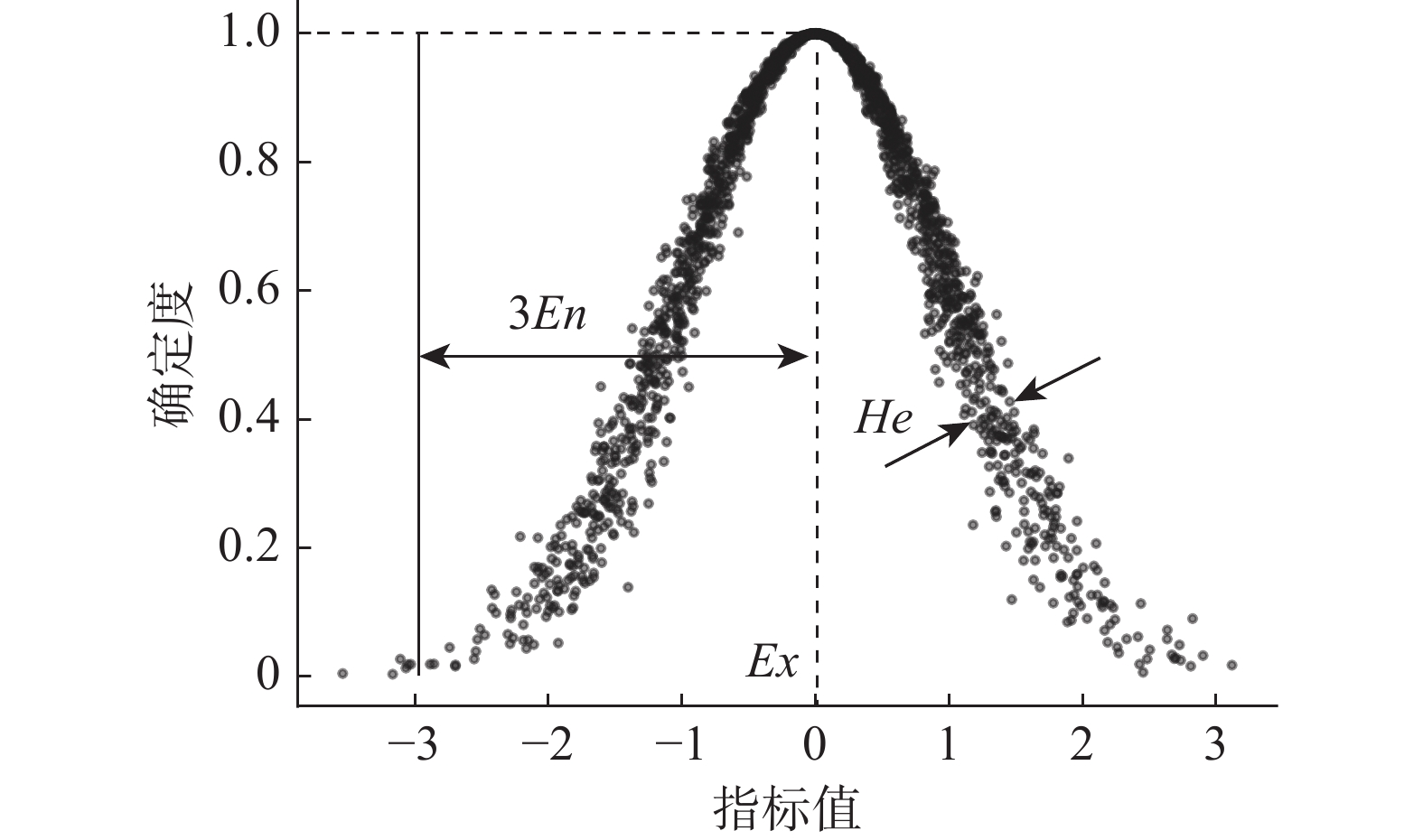

图 1 云模型示意图

Figure 1. Schematic diagram of cloud model

下载: 全尺寸图片幻灯片

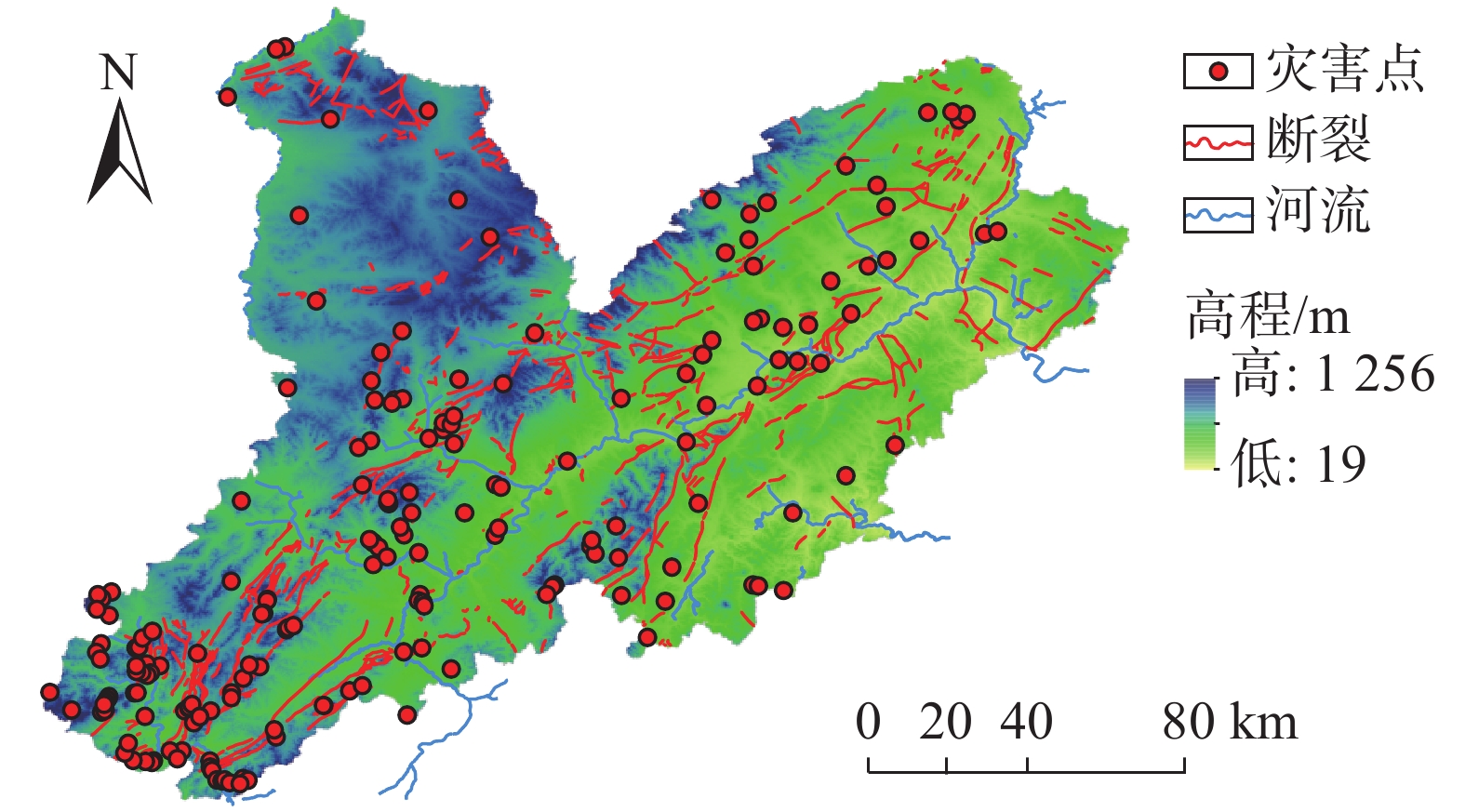

图 2 朝阳市地质情况区位图

Figure 2. Location map of the study area

下载: 全尺寸图片幻灯片

图 3 地质灾害易发性因子与地质灾害点关系图

Figure 3. The relationship between geological hazard susceptibility factors and disaster points

下载: 全尺寸图片幻灯片

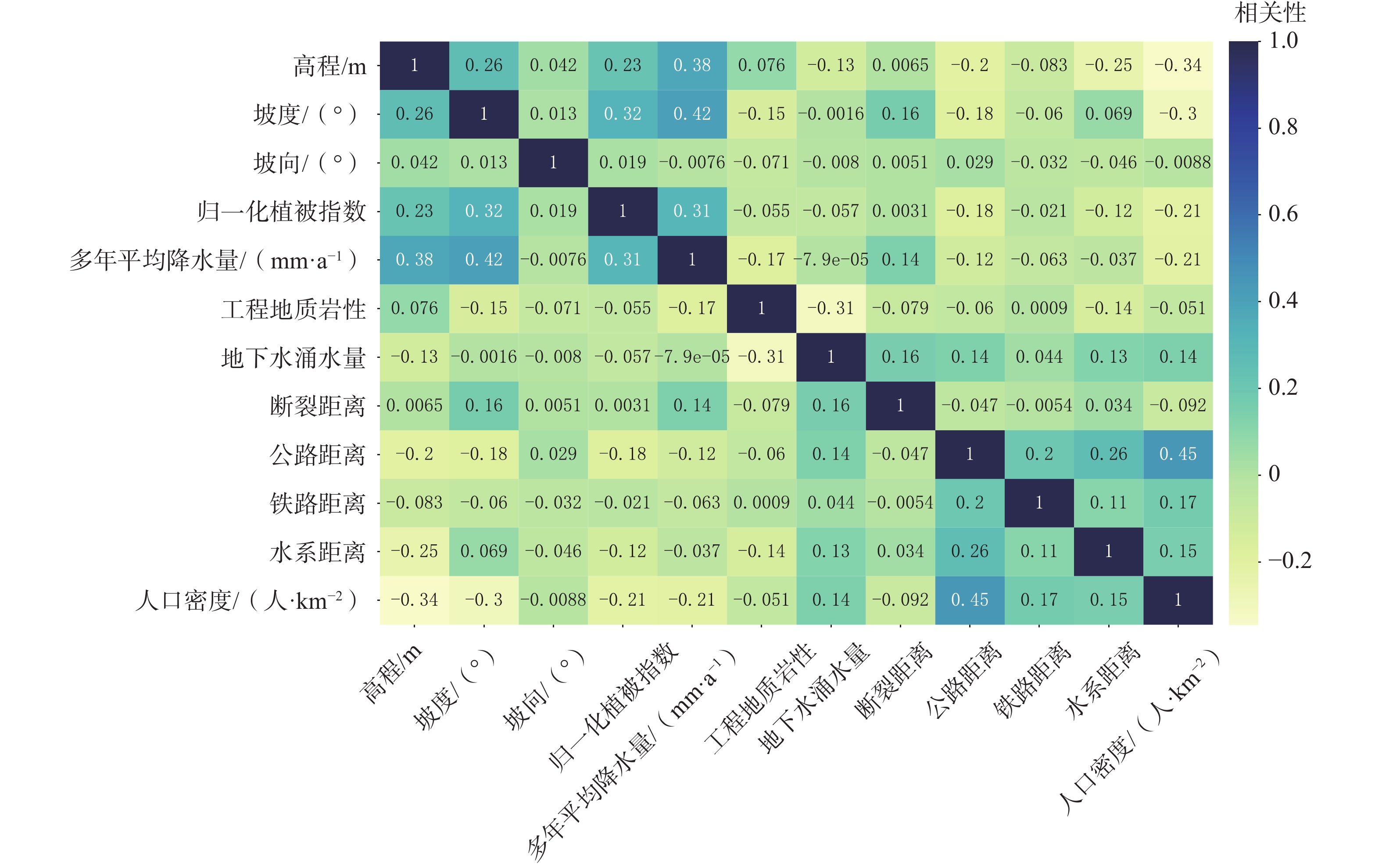

图 4 易发性因子相关性图

Figure 4. Correlation diagram of susceptibility factors

下载: 全尺寸图片幻灯片

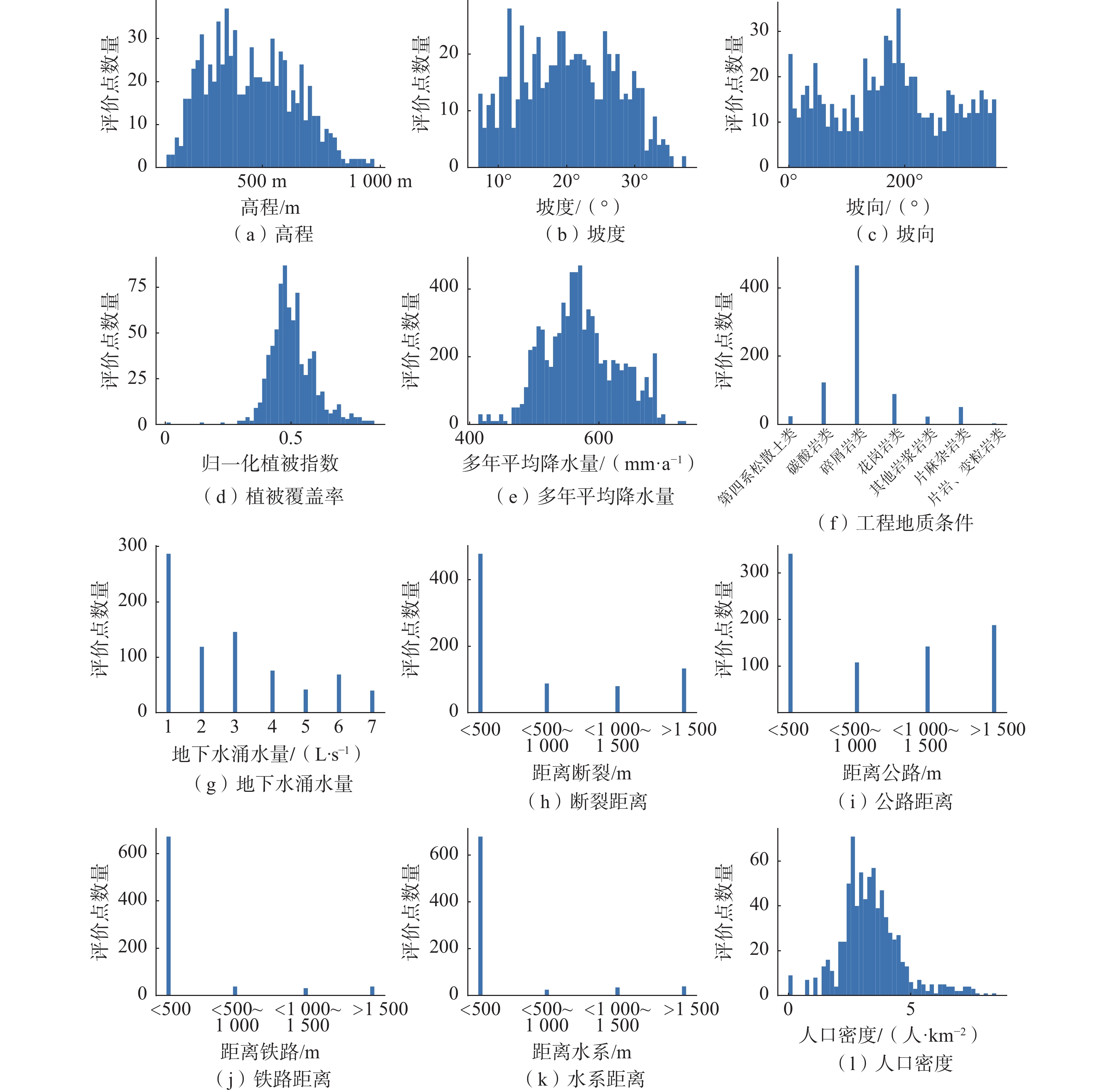

图 5 易发性因子数据分布图

Figure 5. Data distribution of susceptibility factors

下载: 全尺寸图片幻灯片

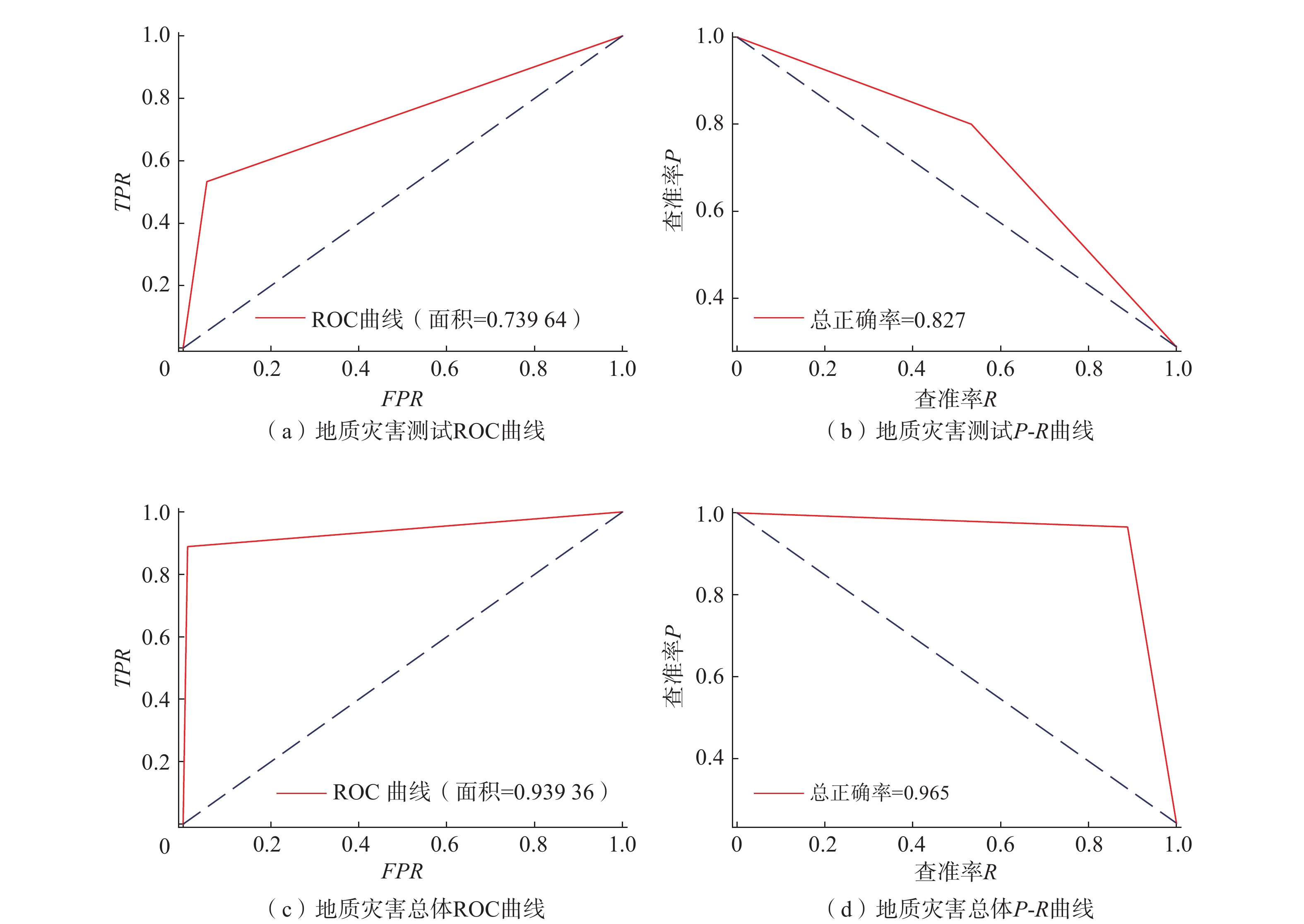

图 6 样本与总体ROC曲线及P-R曲线

Figure 6. ROC curve and P-R curve for sample and overall population

下载: 全尺寸图片幻灯片

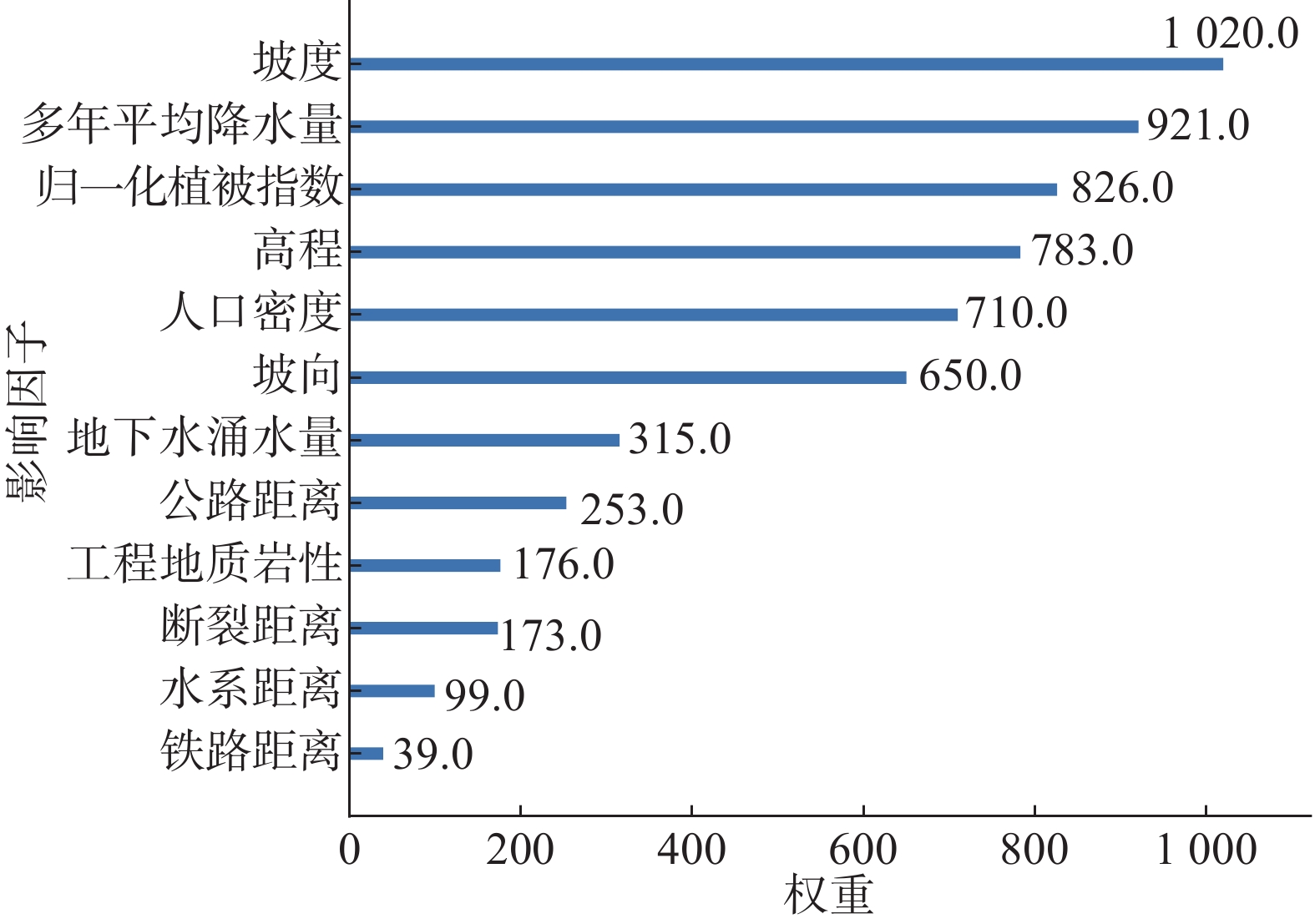

图 7 易发性因子权重分数图

Figure 7. Weighted scores of susceptibility factors

下载: 全尺寸图片幻灯片

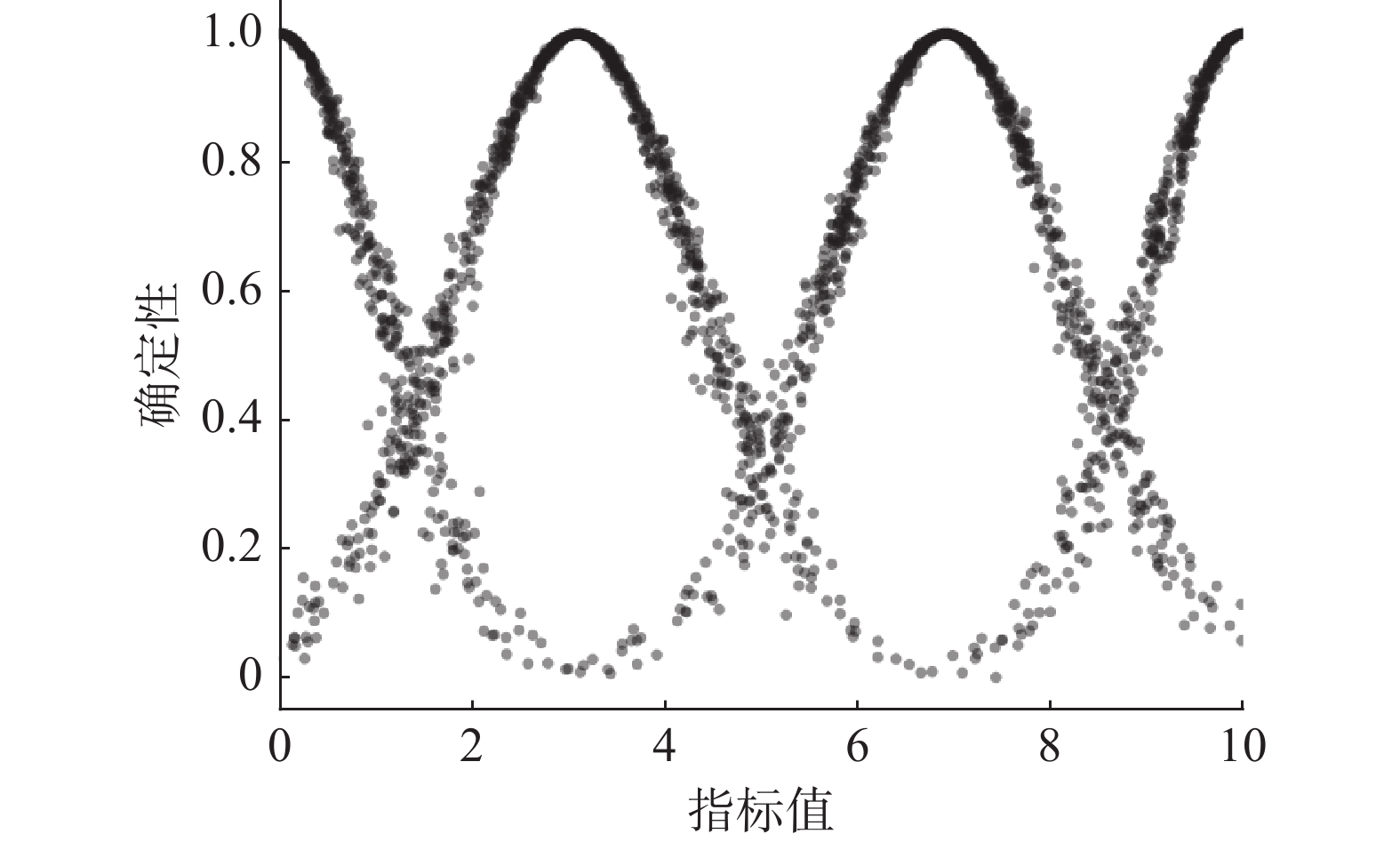

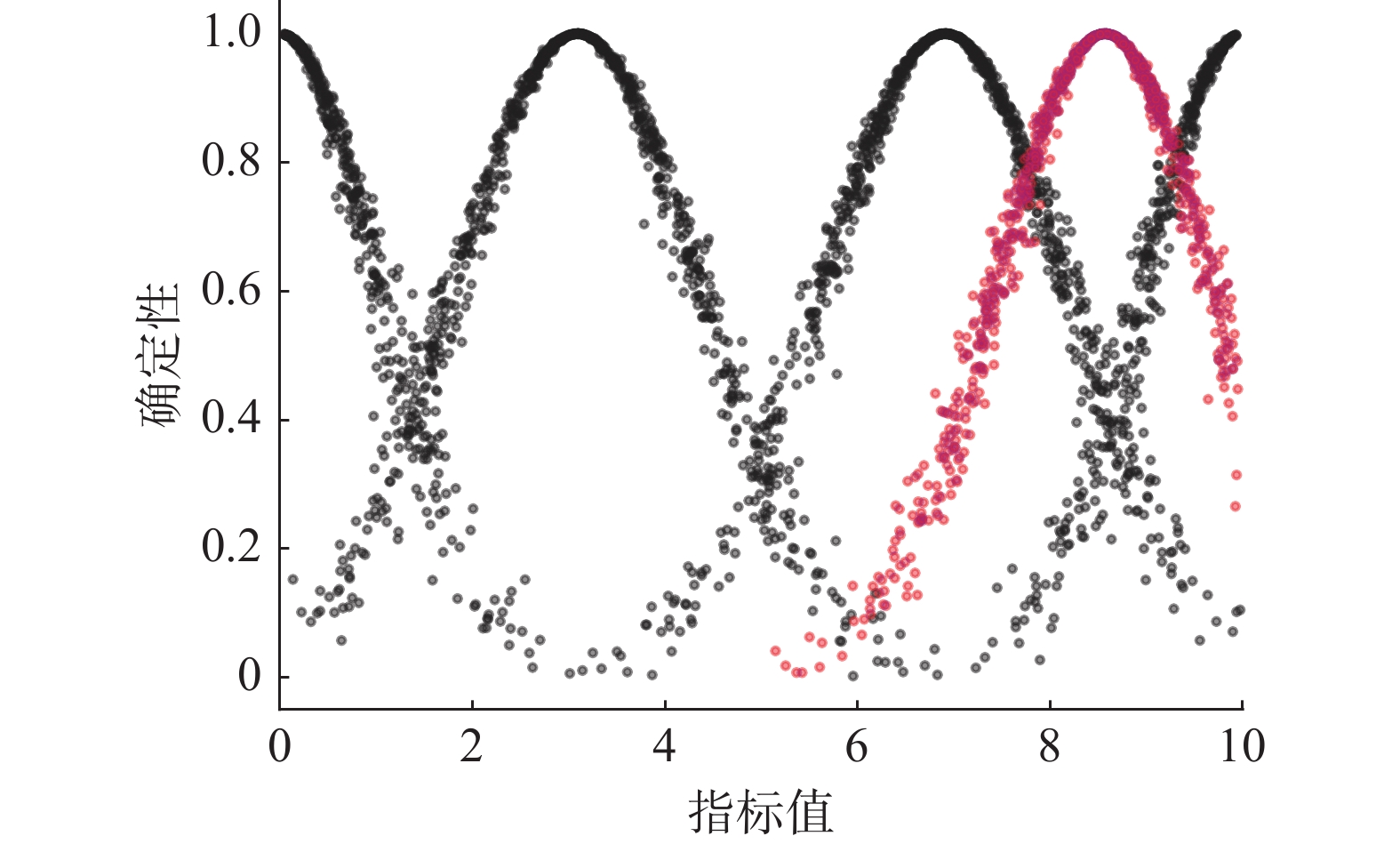

图 8 评价指标云图

Figure 8. Cloud map of evaluation indicators

下载: 全尺寸图片幻灯片

图 9 大东山滑坡正射影像

Figure 9. Orthophoto image of Dadongshan landslide

下载: 全尺寸图片幻灯片

图 10 总体评估等级云相似度图

Figure 10. Cloud similarity graph of overall evaluation grades

下载: 全尺寸图片幻灯片

表 1 影响因子权重表

Table 1. Weight table of impact factors

序号	易发性因子	权重
1	坡度	0.169
2	气象条件	0.151
3	归一化植被指数	0.136
4	高程	0.133
5	人口密度	0.122
6	坡向	0.115
7	水文条件	0.053
8	公路距离	0.042
9	工程地质条件	0.029
10	断裂距离	0.028
11	水系距离	0.017
12	铁路距离	0.006

下载: 导出CSV

表 2 影响因子分级表

Table 2. Grading table of impact factors

序号	易发性因子	分级
1	坡度	{平台，缓坡，陡坡，悬崖}
2	气象条件	{好，较好，较差，差}
3	归一化植被指数	{好，中等，较差，差}
4	高程	{平原，低丘，高丘，低山}
5	人口密度	{好，较好，较差，差}
6	坡向/（°）	{45 ～ 135，315 ～ 45， 135 ～ 225，225 ～ 315}
7	水文条件	{富水性差，富水性较差，富水性较好，富水性好}
8	公路距离	{远，较远，较近，近}
9	工程地质条件	{碎屑岩类，花岗杂岩类、碳酸岩类，其它岩浆岩岩类，第四系松散土类、花岗岩类、片麻杂岩类}
10	断裂距离	{远，较远，较近，近}
11	水系距离	{远，较远，较近，近}
12	铁路距离	{远，较远，较近，近}

下载: 导出CSV

表 3 大东山滑坡影响因子云模型评价值

Table 3. Cloud model Evaluation values of impact factors for Dadongshan landslide

序号	易发性因子	影响因子云模型评价值
1	坡度	（6.91，1.270，0.1）
2	气象条件	（6.91，1.270，0.1）
3	归一化植被指数	（10.00，1.031，0.1）
4	高程	（10.00，1.031，0.1）
5	人口密度	（10.00，1.031，0.1）
6	坡向	（10.00，1.031，0.1）
7	水文条件	（10.00，1.031，0.1）
8	公路距离	（3.09，1.270，0.1）
9	工程地质条件	（10.00，1.031，0.1）
10	断裂距离	（10.00，1.031，0.1）
11	水系距离	（3.09，1.270，0.1）
12	铁路距离	（3.09，1.270，0.1）

下载: 导出CSV

表 4 总体评估等级云相似度表

Table 4. Cloud similarity table of overall evaluation grades

云相似度	高易发	中易发	低易发	不易发
大东山滑坡	0.9990	0.9970	0.9660	0.1319

下载: 导出CSV
