基于SMOTE-Tomek和CNN耦合的滑坡易发性评价模型及其应用以三峡库区秭归—巴东段为例

于宪煜, 汤礼

于宪煜,汤礼. 基于SMOTE-Tomek和CNN耦合的滑坡易发性评价模型及其应用−以三峡库区秭归—巴东段为例[J]. 中国地质灾害与防治学报,2024,35(3): 141-151. DOI: 10.16031/j.cnki.issn.1003-8035.202212002
引用本文: 于宪煜,汤礼. 基于SMOTE-Tomek和CNN耦合的滑坡易发性评价模型及其应用−以三峡库区秭归—巴东段为例[J]. 中国地质灾害与防治学报,2024,35(3): 141-151. DOI: 10.16031/j.cnki.issn.1003-8035.202212002
YU Xianyu,TANG Li. Landslide susceptibility mapping model based on a coupled model of SMOTE-Tomek and CNN and its application: A case study in the Zigui-Badong section of the Three Gorges Reservoir area[J]. The Chinese Journal of Geological Hazard and Control,2024,35(3): 141-151. DOI: 10.16031/j.cnki.issn.1003-8035.202212002
Citation: YU Xianyu,TANG Li. Landslide susceptibility mapping model based on a coupled model of SMOTE-Tomek and CNN and its application: A case study in the Zigui-Badong section of the Three Gorges Reservoir area[J]. The Chinese Journal of Geological Hazard and Control,2024,35(3): 141-151. DOI: 10.16031/j.cnki.issn.1003-8035.202212002

基于SMOTE-Tomek和CNN耦合的滑坡易发性评价模型及其应用——以三峡库区秭归—巴东段为例

基金项目: 国家自然科学基金青年项目(41807297)
详细信息
    作者简介:

    于宪煜(1987—),男,湖北武汉人,博士,副教授,主要研究方向为滑坡地质灾害分析与预测。E-mail:yuxianyu@hbut.edu.cn

  • 中图分类号: P642.22

Landslide susceptibility mapping model based on a coupled model of SMOTE-Tomek and CNN and its application: A case study in the Zigui-Badong section of the Three Gorges Reservoir area

  • 摘要:

    中国是受滑坡灾害影响较为严重的国家,滑坡对受灾害影响地区的人民生命与财产造成了巨大的威胁。滑坡易发性评价作为对滑坡风险预测的重要工具,具有重要的防灾减灾的意义,但是传统的滑坡易发性评价中存在滑坡与非滑坡样本数据不平衡的问题,使得训练集的建立在本质上是对非滑坡数据进行了欠采样,导致滑坡事件的重要信息特征丢失,进而影响到滑坡易发性评价的可靠性。文章以三峡库区巴东至秭归段为例,选取高程、坡度等14个评价因子作为滑坡易发性评价因子,划分原始训练集与验证集,采用SMOTE-Tomek方法(synthetic minority oversampling technique-Tomek Links,SMOTE-Tomek)处理原始训练数据集,构建输入训练集,输入并训练卷积神经网络模型(convolutional neural networks,CNN),得到SMOTE-Tomek-CNN耦合模型,再通过将SMOTE-Tomek方法与传统的欠采样方法(random undersampling, RUS),分别与CNN模型和支持向量机模型(support vector machine, SVM)交叉组合成SMOTE-Tomek-SVM、RUS-CNN和RUS-SVM三种耦合模型,并与SMOTE-CNN耦合模型进行对比。结果表明,在四种耦合模型中,SMOTE-CNN耦合模型的特定类别精度与ROC曲线下面积较高,结果分别为73.60%和0.965,表明该方法的预测能力优于传统的方法,能为研究区滑坡预测工作提供可靠参考。

    Abstract:

    China is a nation severely impacted by landslide disasters, which poses a great threat to the lives and properties of people in the disaster-affected areas. Landslide susceptibility assessment, as an important tool for landslide risk prediction, is of great significance for disaster mitigation and prevention. However, traditional landslide susceptibility assessment faces the issue of imbalanced data between landslide and non-landslide samples, leading to the inherent undersampling of non-landslide data in the training set. This results in the loss of important information features related to landslide events, thereby affecting the reliability of landslide susceptibility assessment. In this study, using the Zigui-Badong section of the Three Gorges Reservoir Area as an example, 14 evaluation factors, such as elevation and slope were chosen as landslide susceptibility assessment factors, and the original training set and the validation set were divided. In this study, the synthetic minority oversampling technique - Tomek Links (SMOTE-Tomek) method was employed to process the original training dataset, construct the input training set. A convolutional neural networks (CNN) was then trained using this input data, resulting in the SMOTE-Tomek-CNN coupling model. In addition, by intersecting the SMOTE-Tomek method with undersampling methods (random undersampling, RUS), they were separately coupled with the CNN model and support vector machine model (SVM) to form three coupled models: SMOTE-Tomek-SVM, RUS-CNN, and RUS-SVM. These were compared with the SMOTE-CNN coupled model. The results indicate that, among the four coupling models, the SMOTE-CNN coupled model has higher specific class accuracy and area under the ROC curve, with values of 73.60% and 0.965, respectively. This indicates that this method's predictive ability is superior to that of traditional methods, making it a reliable resource for landslide prediction in the studied area.

  • 随着社会经济的快速发展,公路、铁路等交通设施建设工作不断向地质环境条件复杂的山区推进,这些线路不可避免地要通过一些自然斜坡和开挖、切坡形成的人工边坡,由边坡失稳造成的人民的生命和财产损失日益严重[13]。公路、铁路边坡长期处于车辆高强度振动环境之中,不可避免的受到频率、振幅随着时间作周期性或非周期性的振动荷载作用。在振动荷载的长期循环作用下,斜坡岩土体中的原生结构面可能扩大并产生新的破裂面,导致斜坡岩土体性能弱化,形成潜在滑动面或者贯通的结构面,影响边坡的稳定性[47]。国内外对斜坡岩土体动力响应研究很多,主要以爆破冲击荷载和地震荷载作用下边坡动态响应和稳定性分析为主[813],常用的研究方法有拟静力法、Newmark法、模型试验法、数值分析法和能量分析法等 [1415]。交通循环荷载具有小振幅、多循环的特点,动力响应十分复杂,目前国内外对交通循环荷载作用下土动力特性以及路基和隧道的动力响应研究较多,而对边坡动力响应研究相对较少[1619]。因此,研究斜坡岩土体在交通荷载作用下的动态响应规律,合理地评价交通荷载对斜坡岩土体的影响,具有十分重要的理论意义和工程应用价值。

    本文在前人研究的基础上,将交通荷载简化为半正弦波振动荷载,采用有限差分数值模拟软件,对不同条件交通循载作用下黄土边坡的动力响应规律进行分析。

    车辆荷载受发动机周期性振动、汽车变速引起的振动、路面不平整引起的车辆振动以及车辆轴重等因素影响,动力特性十分复杂,具有随机性、瞬时性、长期反复性等特点。受路面状况和车辆行驶速度的影响,车轮在路面某点处的作用时间为0.01~0.1 s,具有瞬时性;但是,在道路的寿命期限内,交通荷载作用又是一种循环往复的过程,具有长期反复性;并且受车辆因素影响,交通荷载作用充满了随机性。交通荷载的模拟方式可以分为恒载作用、移动恒载作用和振动移动荷载作用[20]。根据问题研究的侧重面不同,可采用经验简化模拟来满足研究需要。受汽车本身振动特性和道路结构的影响,轮胎在路面行驶时受力并不均匀,时大时小,呈现出一种波动的状态,当汽车轮迹通过路面上某点时,这个过程可以用加载和卸载的组合形式来表示[2122]。交通荷载的变化用多个半正弦波的形式来表达,如图1所示。

    图  1  半正弦波荷载示意图
    Figure  1.  Schematic diagram of half-sine wave load

    图中每个波形代表一次荷载作用,t0表示荷载的间隔,当车辆距离监测点较远时,监测点所受应力趋近于零,当车辆逐渐驶向监测点时,应力逐渐增大,当车辆到达监测点时,应力到达峰值,此后随着车辆远去,应力逐渐变小并趋近于零,这个过程中监测点所受到的应力大小变化表现出了一个半正弦波形式,监测点所受荷载可用式(1)进行表示[2122]

    F(t)=p+q(t) (1)

    式中:p——静荷载;

    q(t)——动荷载,可由如下公式确定:

    q(t)=qmaxsin2(π2+πTt) (2)

    式中:qmax——车辆附加动荷载,幅值一般小于0.3p

    T——荷载周期/s,T=12 L/v

    v——车辆速度/(m·s−1);

    L——轮胎接触面的半径/m,一般取0.15 m。

    若取qmax=0.2p,则交通荷载可简化为如下表达式:

    F(t)=p+0.2psin2(π2+πTt) (3)

    黄土是在第四纪干旱、半干旱条件下形成的陆相疏松堆积物,是一种极其复杂的复合体,在我国广泛分布。在自然状态下,黄土具有较高的强度、较低的压缩性和较强的结构性,其颗粒主要由粉粒组成,具有多孔性,颗粒之间的胶结物质耐水性较差,在受到一定压力或与水作用后,其结构会迅速破坏并发生显著沉降,这些特性决定了黄土边坡研究的复杂性。本文以简单的黄土边坡概化模型为例,建立数值计算模型,模拟普通道路在坡肩时,不同车辆荷载作用下边坡的动力响应。边坡模型坡高20m,坡角45°,模型左侧边界高10 m,右侧边界高30 m,底部边界长35 m,道路位于距坡面2 m的坡肩,厚0.3 m,宽4 m(图2)。其中,在坡体表面从坡肩到坡脚每隔4 m设置S1、S2、S3、S4、S5、S6 6个监测点,在道路中心点下方0,2,4,6,8,10,12 m处设置I1、I2、I3、I4、I5、I6、I7七个监测点,对斜坡体内部和表面的加速度、速度和位移进行监测。

    图  2  边坡数值计算模型
    Figure  2.  Numerical calculation model of slope

    综合考虑前人研究成果和参数反演分析确定边坡岩土体的物理力学参数[2325],岩土体的物理力学参数如表1 所示。

    表  1  斜坡体物理力学参数表
    Table  1.  Physical and mechanical parameters of the slope
    岩土体 天然密度
    /(kg·m−3
    黏聚力
    /kPa
    内摩擦角
    /(°)
    体积模量
    /MPa
    剪切模量
    /MPa
    道路 2500 600 360
    斜坡体 1850 15 18 16.67 7.69
    下载: 导出CSV
    | 显示表格

    车辆荷载作为一种随机荷载,过往车辆重量不一,速度不一,车辆时间间隔不一。考虑到边坡上方道路为普通公路,本文交通荷载中轴载取20,40,60,80,100 kN 5种工况,速度则取20,40,60,80 km/h 4种工况。为了简化,本文考虑车辆连续作用下边坡的动力响应,车辆荷载的间隔t0取0。

    为了能精确模拟振动波在斜坡体中的传播过程及斜坡的动力响应机制,数值模型网格单元的尺寸必须小于振动波最高频率时波长的1/10~1/8,最高频率所对应的波长λ可用以下公式计算[26]

    λ=Csfmax (4)
    Cs=Gρ (5)

    式中:fmax——输入波的最高频率/s,fmax=1T

    Cs——S波在介质中的传播速度/(km·h-1);

    ρ——介质的密度,取1850 kg/m3

    G——剪切模量,取7.69 MPa。

    T=12 L/v,轮胎接触面的半径L=0.15 m,速度20,40,60,80 km/h对应的周期分别:0.324,0.162,0.108,0.081 s,其中80 km/h的周期最小为0.081 s,根据式(4)(5)可以推导出模型允许输入的网格最大尺寸为0.52~0.65 m,综合考虑计算速度与模拟精度,本文采用0.5 m的网格间距。

    黄土力学行为复杂,在外力的作用下,不仅产生弹性变形,还会产生不可恢复的塑性变形。因此,本文的黄土边坡模型采用弹塑性本构关系,屈服准则采用Mohr-Coulomb强度准则。道路由于结构材料均匀、产生变形较小,则采用弹性本构关系。在模拟过程中,首先约束两侧边界水平方向的位移和底部边界竖直方向的位移,使得模型在自重条件下达到平衡状态。在动力分析过程时,去掉模型道路顶部的静力约束条件,边坡模型四周设置为自由场边界,假设汽车在道路中央行驶,轮胎间距为2 m,轮胎宽度0.2 m,在道路中央两侧1 m处,施加宽度为0.2 m的交通荷载,交通荷载连续施加100个周期。阻尼则采用局部阻尼来再现能量损失。

    (1)潜在滑动面分析

    坡体内部受应力作用会产生不同程度的塑性变形,斜坡体(潜在)滑动面可根据剪应变增量的变化来判断,斜坡的变形破坏多沿剪应变增量发生较大变化的部位发生,剪应变增量不发生变化或者较小的部位,一般不会有潜在滑动面的产生。由斜坡体剪应变增量云图可知(图3),在天然状态下,坡体内部产生局部塑性变形,潜在滑动带呈圆弧状从坡脚逐渐向坡顶方向发展,尚未延伸到坡顶,圆弧状应变带在坡脚处剪切应变增量最大。加载轴载100 kN、速度为60 km/h车辆循环荷载后,剪应变增量带向上延伸。施加荷载与未施加荷载的应力应变对比表明:边坡受汽车循环荷载的影响,有发展为滑移面的可能,边坡的失稳最先从坡脚处的剪切破坏开始。

    图  3  不同状态下边坡最大剪应变增量图
    Figure  3.  Increment diagram of maximum shear stress of slope under different states

    (2)竖直方向的加速度、速度、位移变化规律

    本文对轴载100 kN、速度为60 km/h车辆通过道路中央时道路以下0,2,4,6,8,10,12 m不同深度竖向最大加速度、速度和位移随时间的变化规律进行分析(图4)。从图4可以看出,竖向最大加速度、速度时程曲线变化规律类似,在车辆循环荷载作用下,随着深度的增加,变形逐渐减小。监测到不同深度处竖向位移最大值分别为7.16,6.30,5.58,4.91,4.45,4.18,3.96 mm,其随深度的增减逐渐减小。结果表明:轴载100 kN、速度为60 km/h车辆循环荷载作用下,道路下方边坡内部竖向最大加速度、速度和位移沿深度方向衰减,衰减速度逐渐减缓并趋于稳定,车辆循环荷载引起的振动影响深度约为10 m左右,10 m以下车辆循环荷载对土体的扰动较小,最大动应力发生在作用荷载的下部。

    图  4  最大加速度、速度与深度关系
    Figure  4.  Relationship between maximum acceleration, velocity and depth

    本文分析了车辆速度为60 km/h,轴载为20,40,60,80,100 kN 5种工况下斜坡的动力响应规律。通过分析不同轴载作用下边坡表面和内部各监测点的竖向最大加速度、速度和位移的变化规律(图5),结果表明:各轴载作用下,从边坡坡肩到坡脚(从S1到S6)或道路下方随深度的增加(从I1到I7),边坡上监测点远离荷载源,监测点动力响应减弱,竖向最大加速度、速度和位移都表现为逐渐减小的趋势,并且离震源越近的点动力响应越敏感,最大加速度、最大速度的衰减的幅度越大,随着与震源距离的增加衰减幅度逐渐减小。随着车辆轴载的增大,边坡表面和内部的各个监测点的竖向最大加速度、最大速度和最大位移都呈逐渐增大的趋势,其增大的幅度也呈现出离震源越近,增大幅度越大。

    图  5  不同轴载的车辆荷载作用下各监测点的竖向最大加速度、最大速度、最大位移的变化规律
    Figure  5.  The variation patterns of vertical maximum acceleration, maximum velocity and maximum displacement of each monitoring point under different axle loads

    本文分析在100 kN轴载下,行车速度为20,40,60,80 km/h 4种工况条件下斜坡的动力响应规律。通过对边坡表面和内部各监测点的不同行车速度下竖向最大加速度、速度和位移进行监测(图6),结果表明:各行车速度下,边坡表面和内部各监测点的竖向最大加速度、速度和位移变化规律基本相同,都随着与动荷载距离的增加呈逐渐减小的趋势。随行车速度的增加,坡体内部监测点的竖向最大加速度和速度都而逐渐增大,但这种情况只发生在了距坡表10 m范围内,超过10 m后不同车速下的竖向最大速度、加速度都趋向于稳定,位移则随着行车速度的增加而逐渐减小,这主要是因为速度减小,汽车与斜坡体作用时间增加,道路下方坡体的沉降量增加。随行车速度的增加,边坡表面监测点的竖向最大加速度和速度的规律出现波动,但整体还是呈现为逐渐增大,坡表位移与坡体内部监测点位移规律一致,随着行车速度的增加而逐渐减小。

    图  6  不同速度的车辆荷载作用下各监测点的竖向最大加速度、最大速度、最大位移的变化规律
    Figure  6.  The variation patterns of vertical maximum acceleration, maximum velocity, and maximum displacement of each monitoring point under different vehicle loads at different speeds

    (1)在天然状态下,斜坡体内部会产生局部的塑性变形,剪应变增量带从坡脚呈圆弧状向坡中延伸,施加轴载100 kN、速度为60 km/h交通荷载后,剪应变增量带向坡顶延伸发展,边坡受汽车循环荷载的影响,有发展为滑移面的可能,并且最先从坡脚处的剪切破坏开始。

    (2)在轴载100 kN、速度为60 km/h交通荷载作用下,边坡道路下方竖向最大加速度、速度和位移会随着深度的增加而不断衰减。车辆振动荷载对边坡的影响范围大约10 m左右,最大动应力产生在荷载的下部。

    (3)在车辆速度为60 km/h不同轴载情况下,随着距荷载源距离的不断增大,竖向最大加速度、速度及位移逐渐减小,并且振动衰减幅度也随着距离的增大而逐渐减小。随着车辆轴载的逐渐增大,边坡斜坡表面和内部监测点的竖向最大速度、加速度和位移呈现逐渐增大的规律。

    (4)在100 kN轴载不同速度情况下,随着距荷载源距离的不断增大,竖向最大加速度、速度和位移呈逐渐减小趋势。随着车速增加,坡体内部和表面竖向最大加速度和速度都逐渐增大,最大位移则随着车速的增大而逐渐减小。

    (5)值得注意的是,本文以黄土边坡概化模型为例,分析了交通荷载作用下黄土边坡动力响应的普适性规律。但是,考虑到黄土的水敏性和动荷载的振动促渗作用的影响,在后续研究中将进一步结合实际黄土边坡监测数据,并考虑降雨影响,深入剖析交通荷载作用下黄土边坡的动力响应特征与规律。

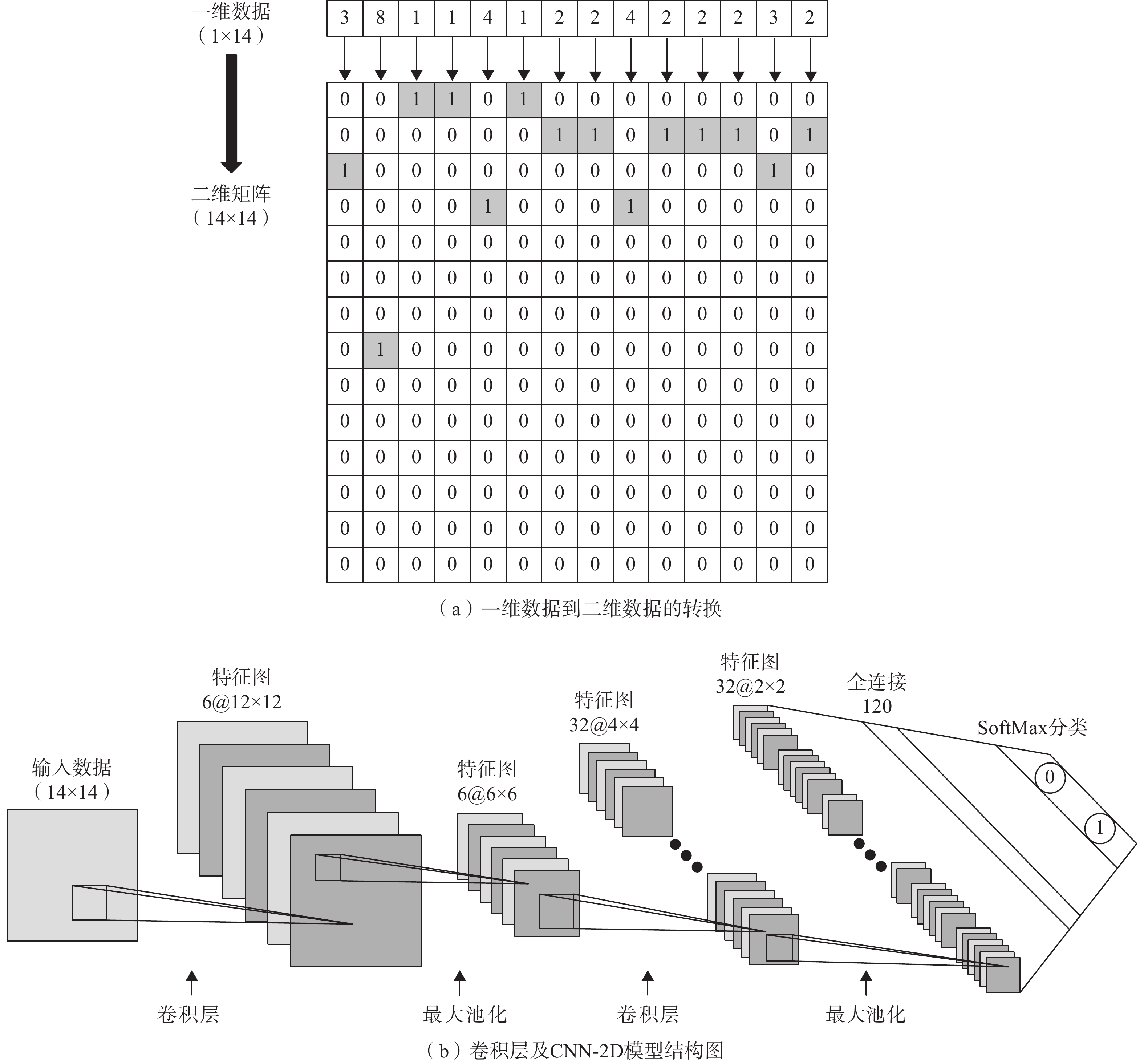

  • 图  1   一维数据到二维矩阵的转换及CNN-2D模型结构图

    Figure  1.   Transformation from one-dimensional data to a two-dimensional matrix and structure diagram of the CNN-2D model

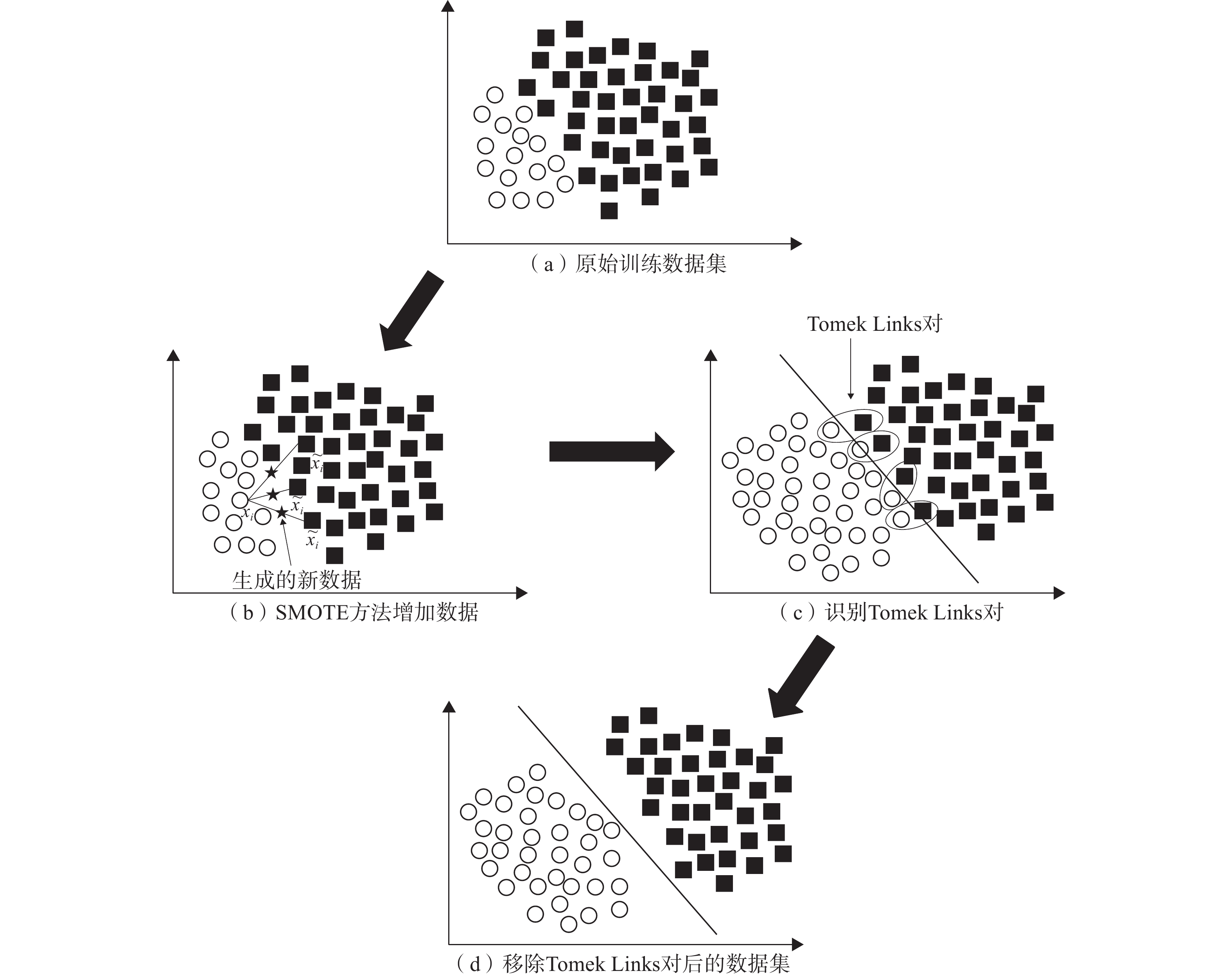

    图  2   SMOTE-Tomek方法处理数据集

    Figure  2.   Processing of the dataset using the SMOTE-Tomek method

    图  3   研究区地理位置及滑坡分布情况

    Figure  3.   Geographic location and landslide distribution in the study area

    图  4   14个因子的PCC系数矩阵

    Figure  4.   Pearson correlation coefficient (PCC) matrix for the 14 factors

    图  5   14个因子的Relief-F系数

    Figure  5.   Relief-F coefficients for the 14 factors

    图  6   研究区滑坡易发性区划结果

    Figure  6.   The result of landslide susceptibility assessment in the study area

    图  7   滑坡易发性评价结果的ROC曲线

    Figure  7.   ROC curve of landslide susceptibility assessment result

    表  1   14个因子多重共线性分析

    Table  1   Multicollinearity analysis of 14 factors

    因子 TOL VIF 因子 TOL VIF
    高程 0.363 2.758 岩性 0.776 1.289
    坡向 0.971 1.030 距长江距离 0.388 2.578
    坡度 0.118 8.454 地形湿度指数 0.838 1.193
    坡长 0.631 1.586 年平均降雨量 0.511 1.957
    地形表面纹理 0.887 1.274 土地利用类型 0.862 1.160
    地形起伏度指数 0.114 8.734 归一化植被指数 0.750 1.334
    距断层距离 0.818 1.223 距道路距离 0.513 1.951
    下载: 导出CSV

    表  2   选取的滑坡易发性评价因子

    Table  2   The selected factors for the landslide susceptibility assessment

    因子 分级 因子 分级 因子 分级
    高程/m <400 地势起伏度指数 0~35 土地利用类型 水体
    400~800 35~70 森林
    800~1200 70~105 人工覆盖面
    1200~1600 105~140 草地
    >1600 >140 农业用地
    坡向 平地 距断层距离/m 0~1500 归一化植被指数 <0.075
    正北 1500~3000 0.075~0.15
    北东 3000~4500 0.15~0.225
    正东 4500~6000 0.225~0.3
    南东 6000~7500 0.3~0.375
    正南 >7500 >0.375
    西南 岩性 硬岩 距道路距离/m 0~800
    正西 软岩 800~1600
    坡度/(°) 0~15 软硬交替 1600~2400
    15~30 距长江距离/m 0~1000 2400~3200
    30~45 1000~2000 3200~4000
    45~60 2000~3000 >4000
    60~75 3000~4000
    >75 4000-5000
    坡长/m 0~800 >5000
    800~1600 地形湿度指数 <6
    1600~2400 6~9
    2400~3200 9~12
    >3200 12~15
    地形表面纹理 0~0.14 15~18
    0.14~0.28 年平均降雨量/mm <990
    0.28~0.42 990~1020
    0.42~0.56 1020~1050
    >0.56 1050~1080
    1080~1110
    >1110
    下载: 导出CSV

    表  3   CNN模型参数设置表

    Table  3   Configuration of parameters for the CNN model

    CNN-2D各参数项 参数值 CNN-2D各参数项 参数值
    卷积核大小 3 × 3 优化器 Adam
    最大池化核 2 × 2 迭代次数 20
    激活函数 ReLu 批量数据大小 2000
    误差函数 交叉熵误差 学习率 0.001
    下载: 导出CSV

    表  4   特定类别精度分析

    Table  4   Analysis of specific category accuracy

    模型 RUS-CNN SMOTE-
    Tomek-CNN
    RUS-SVM SMOTE-
    Tomek-SVM
    极低易发 1.28 0.60 0.76 0.46
    低易发 15.71 16.40 9.31 9.12
    中易发 27.24 29.15 23.91 24.33
    高易发 41.09 45.26 38.57 44.18
    极高易发 64.14 73.60 56.73 61.17
    下载: 导出CSV

    表  5   曲线下面积分析

    Table  5   Area under curve analysis

    检验结果变量 面积 标准差 渐进Sig. 渐进95%置信区间
    下限 上限
    RUS-CNN 0.929 0.001 0.000 0.928 0.930
    SMOTE-Tomek-CNN 0.965 0.000 0.000 0.964 0.965
    RUS-SVM 0.942 0.000 0.000 0.941 0.943
    SMOTE-Tomek-SVM 0.951 0.000 0.000 0.950 0.952
      注:①在非参数假设下;②零假设:实面积=0.5。
    下载: 导出CSV
  • [1]

    XI Chuanjie,HAN Mei,HU Xiewen,et al. Effectiveness of newmark-based sampling strategy for coseismic landslide susceptibility mapping using deep learning,support vector machine,and logistic regression[J]. Bulletin of Engineering Geology and the Environment,2022,81(5):174. DOI: 10.1007/s10064-022-02664-5

    [2] 于宪煜,胡友健,牛瑞卿. 基于RS-SVM模型的滑坡易发性评价因子选择方法研究[J]. 地理与地理信息科学,2016,32(3):23 − 28. [YU Xianyu,HU Youjian,NIU Ruiqing. Research on the method to select landslide susceptibility evaluation factors based on RS-SVM model[J]. Geography and Geo-Information Science,2016,32(3):23 − 28. (in Chinese with English abstract)]

    YU Xianyu, HU Youjian, NIU Ruiqing. Research on the method to select landslide susceptibility evaluation factors based on RS-SVM model[J]. Geography and Geo-Information Science, 2016, 32(3): 23 − 28. (in Chinese with English abstract)

    [3] 贾雨霏, 魏文豪, 陈稳, 等. 基于SOM-I-SVM耦合模型的滑坡易发性评价[J]. 水文地质工程地质,2023,50(3):125 − 137. [JIA Yufei, WEI Wenhao, CHEN Wen, et al. Landslide susceptibility assessment based on the SOM-I-SVM model[J]. Hydrogeology & Engineering Geology,2023,50(3):125 − 137. (in Chinese with English abstract)]

    JIA Yufei, WEI Wenhao, CHEN Wen, et al. Landslide susceptibility assessment based on the SOM-I-SVM model[J]. Hydrogeology & Engineering Geology, 2023, 50(3): 125 − 137. (in Chinese with English abstract)

    [4] 王雪冬, 张超彪, 王翠, 等. 基于Logistic回归与随机森林的和龙市地质灾害易发性评价[J]. 吉林大学学报(地球科学版),2022,52(6):1957 − 1970. [WANG Xuedong, ZHANG Chaobiao, WANG Cui, et al. Geological disaster susceptibility in Helong City based on logistic regression and random forest[J]. Journal of Jilin University (Earth Science Edition),2022,52(6):1957 − 1970. (in Chinese with English abstract)]

    WANG Xuedong, ZHANG Chaobiao, WANG Cui, et al. Geological disaster susceptibility in Helong City based on logistic regression and random forest[J]. Journal of Jilin University (Earth Science Edition), 2022, 52(6): 1957 − 1970. (in Chinese with English abstract)

    [5] 杨得虎, 朱杰勇, 刘帅, 等. 基于信息量、加权信息量与逻辑回归耦合模型的云南罗平县崩滑灾害易发性评价对比分析[J]. 中国地质灾害与防治学报,2023,34(5):43 − 53. [YANG Dehu, ZHU Jieyong, LIU Shuai, et al. Comparative analyses of susceptibility assessment for landslide disasters based on information value, weighted information value and logistic regression coupled model in Luoping County, Yunnan Province[J]. The Chinese Journal of Geological Hazard and Control,2023,34(5):43 − 53. (in Chinese with English abstract)]

    YANG Dehu, ZHU Jieyong, LIU Shuai, et al. Comparative analyses of susceptibility assessment for landslide disasters based on information value, weighted information value and logistic regression coupled model in Luoping County, Yunnan Province[J]. The Chinese Journal of Geological Hazard and Control, 2023, 34(5): 43 − 53. (in Chinese with English abstract)

    [6] 杜国梁, 杨志华, 袁颖, 等. 基于逻辑回归–信息量的川藏交通廊道滑坡易发性评价[J]. 水文地质工程地质,2021,48(5):102 − 111. [DU Guoliang, YANG Zhihua, YUAN Ying, et al. Landslide susceptibility mapping in the Sichuan-Tibet traffic corridor using logistic regression-information value method[J]. Hydrogeology & Engineering Geology,2021,48(5):102 − 111. (in Chinese with English abstract)]

    DU Guoliang, YANG Zhihua, YUAN Ying, et al. Landslide susceptibility mapping in the Sichuan-Tibet traffic corridor using logistic regression-information value method[J]. Hydrogeology & Engineering Geology, 2021, 48(5): 102 − 111. (in Chinese with English abstract)

    [7] 林荣福,刘纪平,徐胜华,等. 随机森林赋权信息量的滑坡易发性评价方法[J]. 测绘科学,2020,45(12):131 − 138. [LIN Rongfu,LIU Jiping,XU Shenghua,et al. Evaluation method of landslide susceptibility based on random forest weighted information[J]. Science of Surveying and Mapping,2020,45(12):131 − 138. (in Chinese with English abstract)]

    LIN Rongfu, LIU Jiping, XU Shenghua, et al. Evaluation method of landslide susceptibility based on random forest weighted information[J]. Science of Surveying and Mapping, 2020, 45(12): 131 − 138. (in Chinese with English abstract)

    [8] 张明岳,李丽敏,温宗周. RNN与LSTM方法用于滑坡位移动态预测的研究[J]. 人民珠江,2021,42(9):6 − 13. [ZHANG Mingyue,LI Limin,WEN Zongzhou. Research on RNN and LSTM method for dynamic prediction of landslide displacement[J]. Pearl River,2021,42(9):6 − 13(in Chinese with English abstract)]

    ZHANG Mingyue, LI Limin, WEN Zongzhou. Research on RNN and LSTM method for dynamic prediction of landslide displacement[J]. Pearl River, 2021, 42(9): 6 − 13(in Chinese with English abstract)

    [9] 顾华奇,陈皆红,李婷. 基于深度学习的滑坡监测与早期预警方法研究[J]. 江西科学,2019,37(2):209 − 213. [GU Huaqi,CHEN Jiehong,LI Ting. Research on landslide monitoring and early warning based on depth learning[J]. Jiangxi Science,2019,37(2):209 − 213. (in Chinese with English abstract)]

    GU Huaqi, CHEN Jiehong, LI Ting. Research on landslide monitoring and early warning based on depth learning[J]. Jiangxi Science, 2019, 37(2): 209 − 213. (in Chinese with English abstract)

    [10]

    Huijuan,ZHANG. Combining a class-weighted algorithm and machine learning models in landslide susceptibility mapping:A case study of Wanzhou section of the Three Gorges Reservoir,China[J]. Computers & Geosciences,2022,158:104966.

    [11]

    WANG Yi. Comparison of convolutional neural networks for landslide susceptibility mapping in Yanshan County,China[J]. Science of the Total Environment,2019,666:975 − 993. DOI: 10.1016/j.scitotenv.2019.02.263

    [12]

    XU Chong. GIS-based support vector machine modeling of earthquake-triggered landslide susceptibility in the Jianjiang River watershed,China[J]. Geomorphology,2012,145/146:70 − 80. DOI: 10.1016/j.geomorph.2011.12.040

    [13]

    CHAWLA N V,BOWYER K W,HALL L O,et al. SMOTE:synthetic minority over-sampling technique[J]. Journal of Artificial Intelligence Research,2002,16:321 − 357. DOI: 10.1613/jair.953

    [14] 武雪玲,杨经宇,牛瑞卿. 一种结合SMOTE和卷积神经网络的滑坡易发性评价方法[J]. 武汉大学学报(信息科学版),2020,45(8):1223 − 1232. [WU Xueling,YANG Jingyu,NIU Ruiqing. A landslide susceptibility assessment method using SMOTE and convolutional neural network[J]. Geomatics and Information Science of Wuhan University,2020,45(8):1223 − 1232. (in Chinese with English abstract)]

    WU Xueling, YANG Jingyu, NIU Ruiqing. A landslide susceptibility assessment method using SMOTE and convolutional neural network[J]. Geomatics and Information Science of Wuhan University, 2020, 45(8): 1223 − 1232. (in Chinese with English abstract)

    [15] 王忠洋. 基于SMOTE-Tomek和卷积神经网络的入侵检测模型研究[D]. 南昌:江西师范大学,2020. [WANG Zhongyang. Research on intrusion detection model based on SMOTE-tomek and convolutional neural network[D]. Nanchang:Jiangxi Normal University,2020. (in Chinese with English abstract)]

    WANG Zhongyang. Research on intrusion detection model based on SMOTE-tomek and convolutional neural network[D]. Nanchang: Jiangxi Normal University, 2020. (in Chinese with English abstract)

    [16] 于宪煜. 基于多源数据和多尺度分析的滑坡易发性评价方法研究[D]. 武汉:中国地质大学,2016. [YU Xianyu. Study on landslide susceptibility evaluation method based on multi-source data and multi-scale analysis[D]. Wuhan:China University of Geosciences,2016. (in Chinese with English abstract)]

    YU Xianyu. Study on landslide susceptibility evaluation method based on multi-source data and multi-scale analysis[D]. Wuhan: China University of Geosciences, 2016. (in Chinese with English abstract)

    [17]

    YU Xianyu,ZHANG Kaixiang,SONG Yingxu,et al. Study on landslide susceptibility mapping based on rock–soil characteristic factors[J]. Scientific Reports,2021,11:15476. DOI: 10.1038/s41598-021-94936-5

    [18]

    LI Wenjuan,FANG Zhice,WANG Yi. Stacking ensemble of deep learning methods for landslide susceptibility mapping in the Three Gorges Reservoir area,China[J]. Stochastic Environmental Research and Risk Assessment,2022,36(8):2207 − 2228. DOI: 10.1007/s00477-021-02032-x

    [19]

    FANG Zhice,WANG Yi,PENG Ling,et al. A comparative study of heterogeneous ensemble-learning techniques for landslide susceptibility mapping[J]. International Journal of Geographical Information Science,2021,35(2):321 − 347. DOI: 10.1080/13658816.2020.1808897

    [20]

    DAHL G E,SAINATH T N,HINTON G E. Improving deep neural networks for LVCSR using rectified linear units and dropout[C]//2013 IEEE International Conference on Acoustics,Speech and Signal Processing. May 26-31,2013,Vancouver,BC,Canada. IEEE,2013:8609 − 8613.

    [21]

    KINGMA D P,BA J. Adam:A method for stochastic optimization[EB/OL]. 2014:arXiv:1412.6980.

    [22]

    YU Xianyu,GAO Huachen. A landslide susceptibility map based on spatial scale segmentation:A case study at Zigui-Badong in the Three Gorges Reservoir Area,China[J]. PLoS One,2020,15(3):e0229818. DOI: 10.1371/journal.pone.0229818

    [23]

    SÜZEN M L,DOYURAN V. A comparison of the GIS based landslide susceptibility assessment methods:Multivariate versus bivariate[J]. Environmental Geology,2004,45(5):665 − 679. DOI: 10.1007/s00254-003-0917-8
