基于水文过程和应力应变耦合的陕北黄土滑坡复活机理分析

王康 畅俊斌 李晓科 朱文峰 卢啸 刘慧

王康,畅俊斌,李晓科,等. 基于水文过程和应力应变耦合的陕北黄土滑坡复活机理分析−以延安二科庄滑坡为例[J]. 中国地质灾害与防治学报,2023,34(6): 46-55 doi: 10.16031/j.cnki.issn.1003-8035.202303037
引用本文: 王康,畅俊斌,李晓科,等. 基于水文过程和应力应变耦合的陕北黄土滑坡复活机理分析−以延安二科庄滑坡为例[J]. 中国地质灾害与防治学报,2023,34(6): 46-55 doi: 10.16031/j.cnki.issn.1003-8035.202303037
WANG Kang,CHANG Junbin,LI Xiaoke,et al. Mechanistic analysis of loess landslide reactivation in northern Shaanxi based on coupled numerical modeling of hydrological processes and stress strain evolution: A case study of the Erkezhuanglandslide in Yan’an[J]. The Chinese Journal of Geological Hazard and Control,2023,34(6): 46-55 doi: 10.16031/j.cnki.issn.1003-8035.202303037
Citation: WANG Kang,CHANG Junbin,LI Xiaoke,et al. Mechanistic analysis of loess landslide reactivation in northern Shaanxi based on coupled numerical modeling of hydrological processes and stress strain evolution: A case study of the Erkezhuanglandslide in Yan’an[J]. The Chinese Journal of Geological Hazard and Control,2023,34(6): 46-55 doi: 10.16031/j.cnki.issn.1003-8035.202303037

基于水文过程和应力应变耦合的陕北黄土滑坡复活机理分析

doi: 10.16031/j.cnki.issn.1003-8035.202303037
基金项目: 陕西地矿集团有限公司科研专项资金项目(KY202116)
详细信息
    作者简介:

    王康:王 康(1987-),男,地下水科学与工程专业,本科,高级工程师,从事水工环地质调查及地质灾害防治工作。E-mail:276636972@qq.com

    通讯作者:

    畅俊斌(1968-),男,水工地质专业,本科,正高级工程师,从事水工环地质调查及地质灾害防治工作。E-mail:290544312@qq.com

  • 中图分类号: P642.22

Mechanistic analysis of loess landslide reactivation in northern Shaanxi based on coupled numerical modeling of hydrological processes and stress strain evolution: A case study of the Erkezhuanglandslide in Yan’an

  • 摘要: 二庄科滑坡是典型受雨季影响的滑坡,降雨会改变老滑坡的渗流场,削弱基质吸力和土体抗剪强度,导致内部产生张拉裂缝,引发整体滑动和局部大变形。现有的研究很少考虑二庄科滑坡的渗流场与应力场的相互作用。因此,文章基于实际工程地质灾害背景,在现场监测数据和地形物理参数的基础上,建立了几何计算模型,并进行了水力耦合数值模拟。通过研究滑坡内部饱和度和孔压的变化规律来探讨降雨入渗规律,从应力位移的角度探讨降雨强度对滑坡复活的影响规律。此外,为了验证方法的准确性和可行性,选取了滑坡实测点位并找到了数值模型对应位置,对位移、土压力和饱和度三个方面进行了对比分析,得出数值模型能较好地反映实际情况的结论。通过数值模拟耦合计算和降雨条件下老滑坡复活机制的研究,对实测数据进行解释并分析滑坡复活过程,为后续工程预警和减灾工作提供理论基础和技术指导。

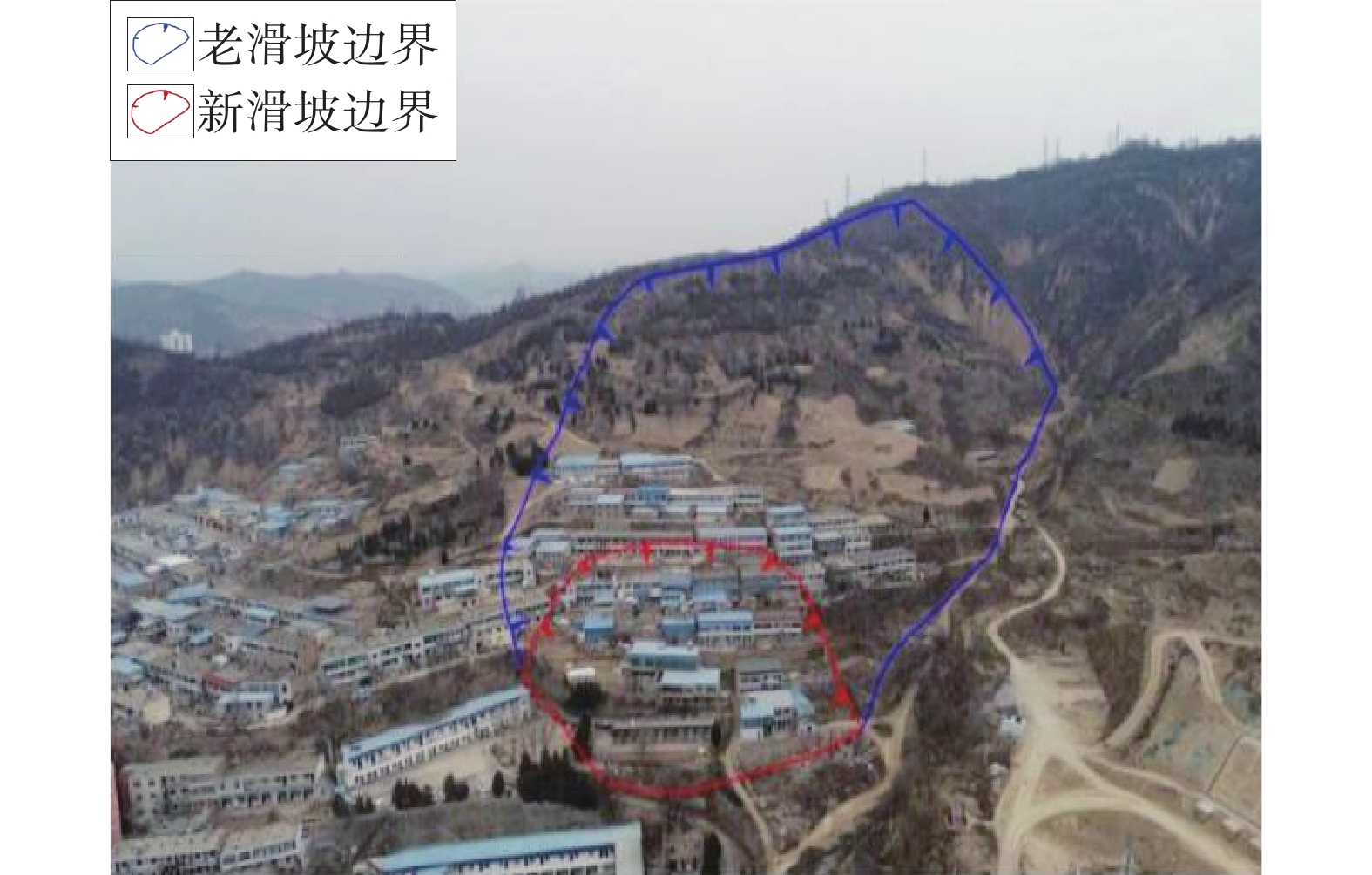

  • 图  1  二庄科滑坡全貌[16]

    Figure  1.  Overview of the Erzhuangke landslide

    图  2  工程地质灾害监测点分布图[16]

    Figure  2.  Distribution map of engineering geological disaster monitoring points

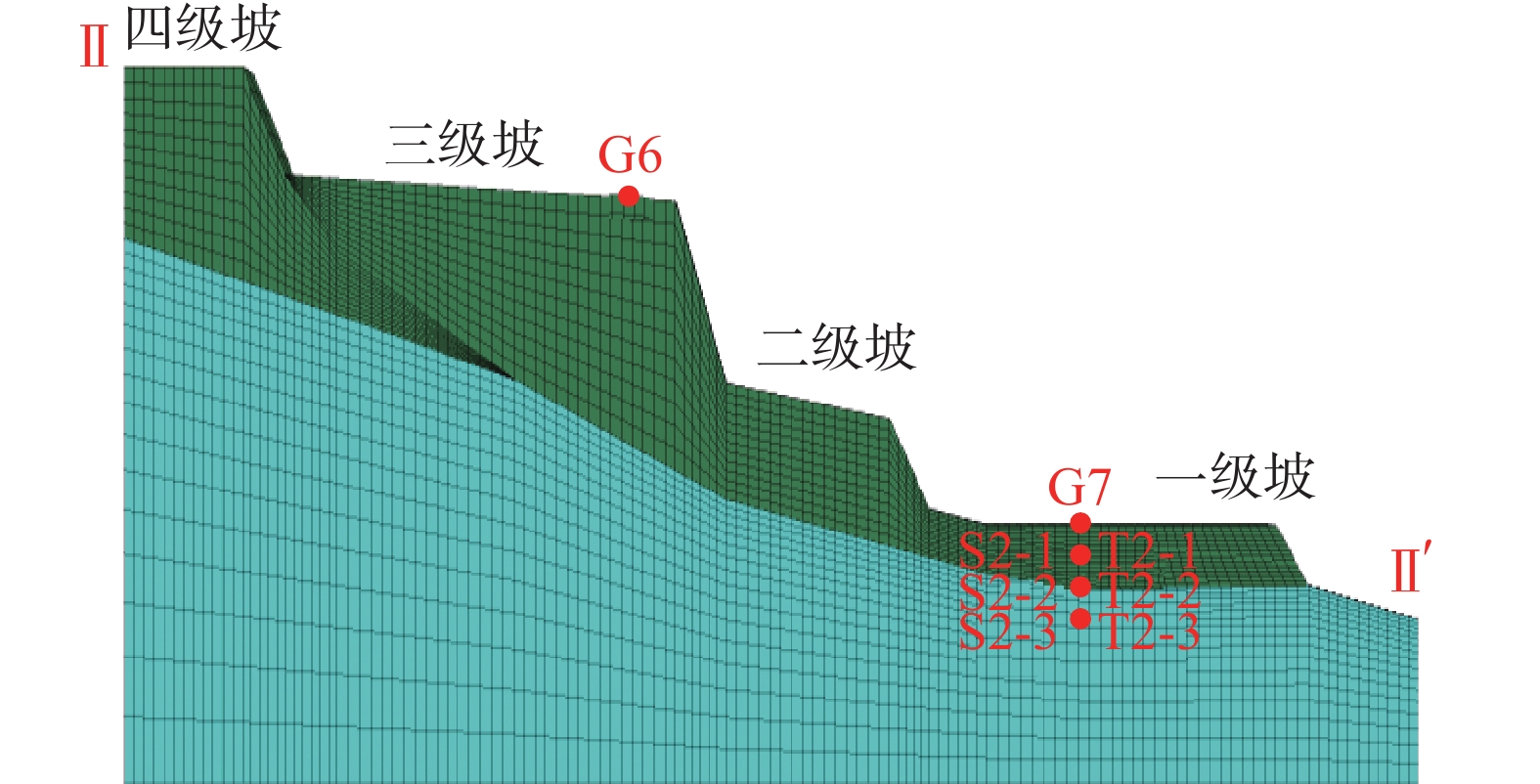

    图  3  二庄科滑坡FLAC3D建模

    Figure  3.  FLAC3D modeling of the Erzhuangke landslide

    图  4  特大暴雨情况下,孔隙压力及饱和度变化情况

    Figure  4.  Variation of pore pressure and saturation under extreme heavy rainfall

    图  5  切应力分布图

    Figure  5.  Shear stress distribution map

    图  6  滑坡位移对比

    Figure  6.  Comparison of landslide displacements

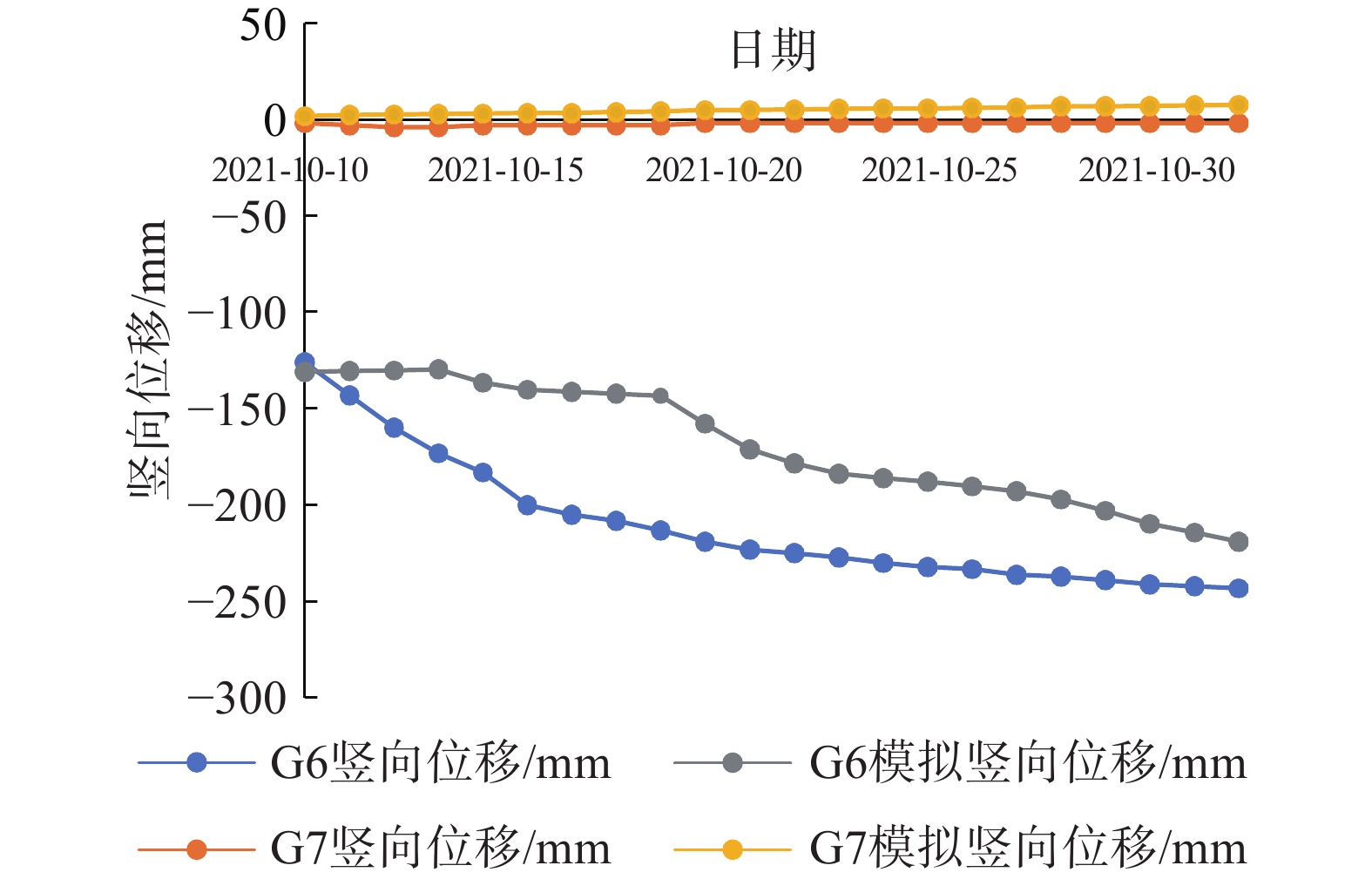

    图  7  G6、G7监测点在降雨过程中的竖向位移及模拟结果

    Figure  7.  Vertical displacement and simulation results of monitoring points G6 and G7 during rainfall process

    图  8  G6、G7监测点在降雨过程中的水平位移及模拟结果

    Figure  8.  Horizontal displacement and simulation results of monitoring points G6 and G7 during rainfall process

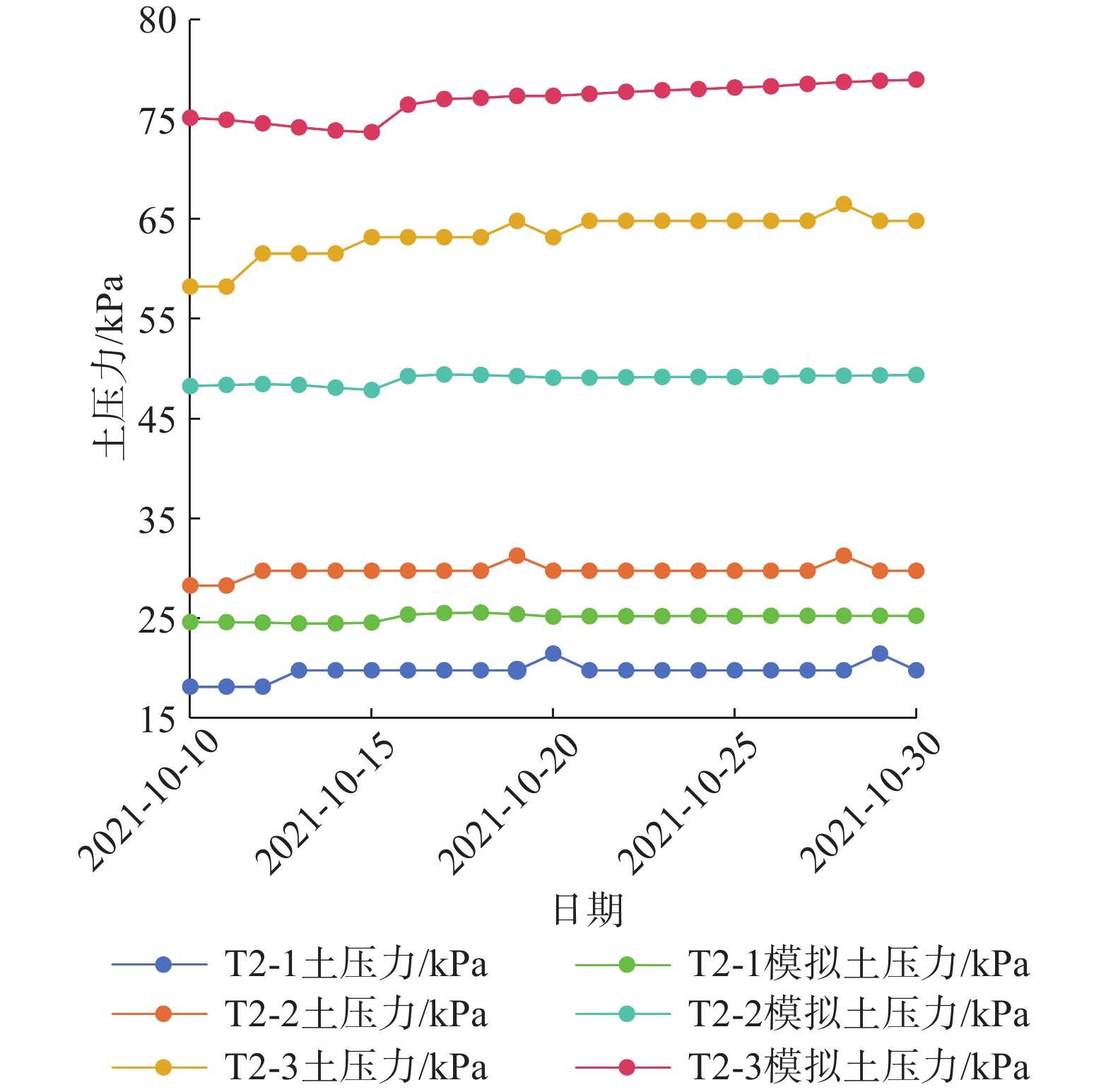

    图  9  G7监测点在降雨过程中的竖向土压力及模拟结果

    Figure  9.  Vertical soil pressure and simulation results of monitoring point G7 during rainfall process

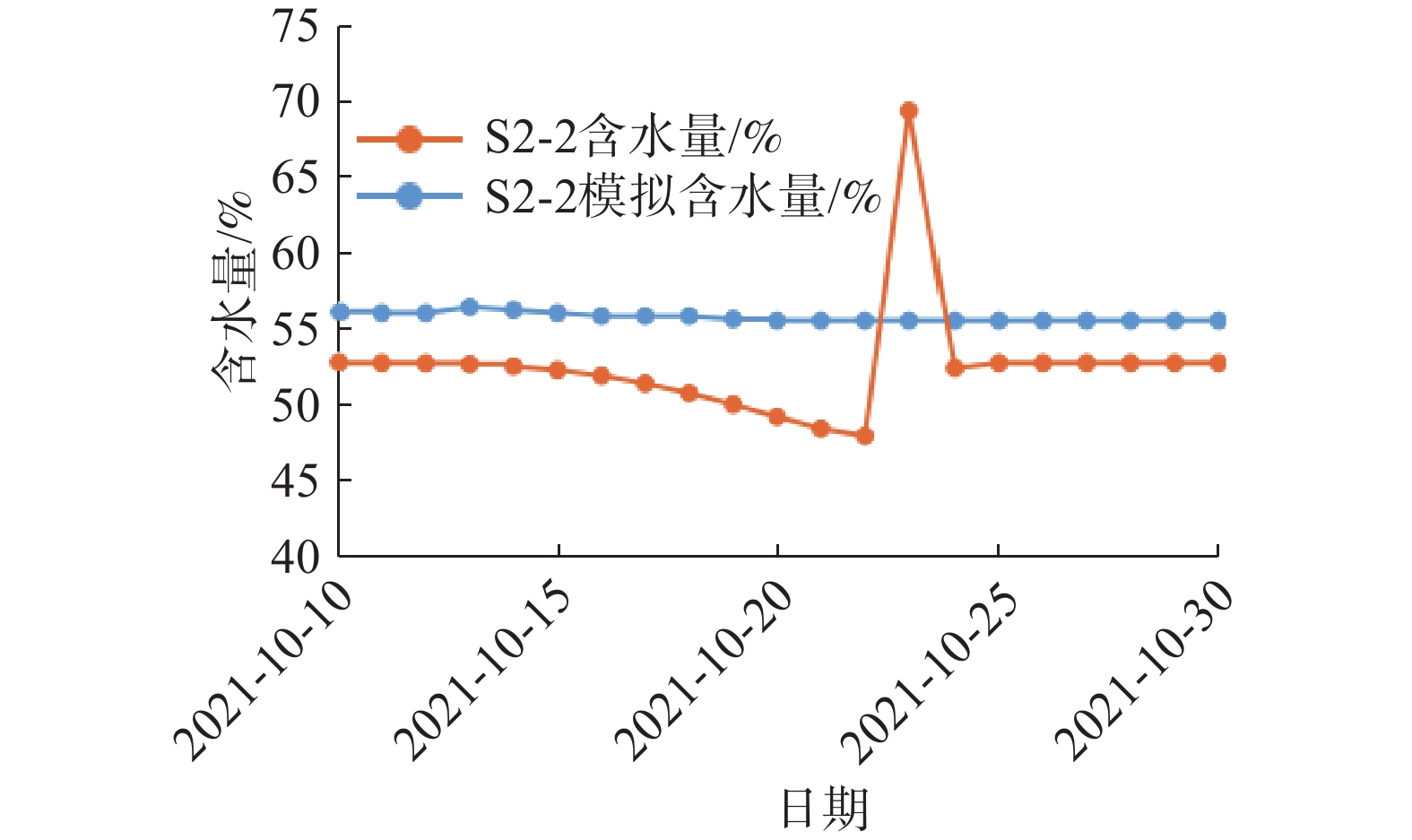

    图  10  G7监测点深度2 m处在降雨过程中的饱和度及模拟结果

    Figure  10.  Saturation and simulation results at a depth of 2 m for monitoring point G7 during rainfall process

    表  1  模型参数设置

    Table  1.   Table of model parameter settings

    土体类型 密度/(kg∙m−3 体积模量/Pa 孔隙率 饱和渗透系数/(m∙s−1 内摩擦角/(°) 黏聚力/Pa 剪切模量/Pa 初始孔隙压力/Pa
    Qh 1900 2×108 0.40 3.9×10−4 18 3×104 5×104 21977
    Qp 1900 2×108 0.40 3.9×10−4 18 3×104 5×104 21977
    Q2 2800 1×109 0.15 1×10−12 36 1.2×106 3×108 0
    下载: 导出CSV

    表  2  G6点竖向位移实际模拟数据对比

    Table  2.   Comparison of actual and simulated vertical displacements for monitoring point G6

    日期 2021-10-28 2021-10-29 2021-10-30 2021-10-31
    实际数据/mm 239.01 241.03 242.00 243.04
    模拟数据/mm 202.98 209.76 214.31 219.05
    误差/% 15.07 12.97 11.44 9.87
    下载: 导出CSV

    表  3  G7点竖向位移实际模拟数据对比

    Table  3.   Comparison of actual and simulated vertical displacements for monitoring point G7

    日期 2021-10-10 2021-10-11 2021-10-12 2021-10-13
    实际数据/mm −2.014 −2.991 −4.028 −4.028
    模拟数据/mm 1.63 2.37 2.61 2.78
    误差/% 180.93 179.24 164.80 169.02
    下载: 导出CSV

    表  4  G6点水平位移实际模拟数据对比

    Table  4.   Comparison of actual and simulated horizontal displacements for monitoring point G6

    日期 2021-10-15 2021-10-16 2021-10-17 2021-10-18
    实际数据/mm 109.50 111.35 113.32 117.00
    模拟数据/mm 102.85 106.15 107.12 107.97
    误差/% 6.07 4.67 5.47 7.72
    下载: 导出CSV

    表  5  G7点水平位移实际模拟数据对比

    Table  5.   Comparison of actual and simulated horizontal displacements for monitoring point G7

    日期 2021-10-12 2021-10-13 2021-10-14 2021-10-15
    实际数据/mm 9.249 14.798 20.348 24.093
    模拟数据/mm 4.09 4.17 4.40 5.67
    误差/% 55.7 71.82 78.38 76.47
    下载: 导出CSV
  • [1] 刘子振. 持续降雨入渗非饱和黏土边坡失稳机理及其应用研究[D]. 兰州:兰州大学,2014. [LIU Zizhen. Instability mechanism and application analysis of partially saturated clay slope under sustained rainfall infiltration[D]. Lanzhou:Lanzhou University,2014. (in Chinese with English abstract)

    LIU Zizhen. Instability mechanism and application analysis of partially saturated clay slope under sustained rainfall infiltration[D]. Lanzhou: Lanzhou University, 2014. (in Chinese with English abstract)
    [2] 吴小策. 降雨入渗对土石混合体边坡稳定性影响机理研究[D]. 长沙:中南大学,2010:1 − 6. [WU Xiaoce. Study on influence mechanism of rainfall infiltration on stability of soil-rock mixture slope[D]. Changsha:Central South University,2010:1 − 6. (in Chinese with English abstract)

    WU Xiaoce. Study on influence mechanism of rainfall infiltration on stability of soil-rock mixture slope[D]. Changsha: Central South University, 2010: 1 − 6. (in Chinese with English abstract)
    [3] GREEN W H,AMPT G A. studies on soil physics:Flow of air and water through soils[J]. Jagr Sci,1911,4(1):1 − 24.
    [4] XIAO Zhenghua,HAN Bo,TUOHUTI A,et al. Stability analysis of earth dam under unsaturated seepage[C]//Advanced Materials Research. Trans Tech Publications Ltd,2008,33:1129 − 1134.
    [5] LIU Zizhen,YAN Zhixin,QIU Zhanhong,et al. Stability analysis of an unsaturated soil slope considering rainfall infiltration based on the Green-Ampt model[J]. Journal of Mountain Science,2020,17(10):2577 − 2590. doi: 10.1007/s11629-019-5744-9
    [6] 孙永帅,贾苍琴,王贵和. 降雨对边坡稳定性影响研究综述[J]. 施工技术,2012,41(17):63 − 66. [SUN Yongshuai,JIA Cangqin,WANG Guihe. Overview of research on stability of slope during rainfall[J]. Construction Technology,2012,41(17):63 − 66. (in Chinese with English abstract)

    SUN Yongshuai, JIA Cangqin, WANG Guihe. Overview of research on stability of slope during rainfall[J]. Construction Technology, 2012, 4117): 6366. (in Chinese with English abstract)
    [7] HUANG Xiaolan,XIONG Jun,LIU Jianjun. Two‐phase seepage analysis in unsaturated rock and soil slope during rainfall[J]. AIP Conference Proceedings,2010,1207(1):507 − 512.
    [8] 杨国强,陶虎,雷少伟,等. 不同雨型条件下非饱和土边坡渗流及稳定分析[J]. 水电能源科学,2022,40(6):166 − 170. [YANG Guoqiang,TAO Hu,LEI Shaowei,et al. Analysis of seepage and stability of unsaturated soil slopes under different rainfall patterns[J]. Water Resources and Power,2022,40(6):166 − 170. (in Chinese with English abstract)

    YANG Guoqiang, TAO Hu, LEI Shaowei, et al. Analysis of seepage and stability of unsaturated soil slopes under different rainfall patterns[J]. Water Resources and Power, 2022, 406): 166170. (in Chinese with English abstract)
    [9] 蒋中明,熊小虎,曾铃. 基于FLAC3D平台的边坡非饱和降雨入渗分析[J]. 岩土力学,2014,35(3):855 − 861. [JIANG Zhongming,XIONG Xiaohu,ZENG Ling. Unsaturated seepage analysis of slope under rainfall condition based on FLAC3D[J]. Rock and Soil Mechanics,2014,35(3):855 − 861. (in Chinese with English abstract)

    JIANG Zhongming, XIONG Xiaohu, ZENG Ling. Unsaturated seepage analysis of slope under rainfall condition based on FLAC3D[J]. Rock and Soil Mechanics, 2014, 353): 855861. (in Chinese with English abstract)
    [10] 吴梦喜. 饱和-非饱和土中渗流Richards方程有限元算法[J]. 水利学报,2009,40(10):1274 − 1279. [WU Mengxi. Finite-element algorithm for Richards’ equation for saturated-unsaturated seepage flow[J]. Journal of Hydraulic Engineering,2009,40(10):1274 − 1279. (in Chinese with English abstract)

    WU Mengxi. Finite-element algorithm for Richards’ equation for saturated-unsaturated seepage flow[J]. Journal of Hydraulic Engineering, 2009, 4010): 12741279. (in Chinese with English abstract)
    [11] 吕雨桦,梁德贤,王莹,等. 降雨条件下非饱和土边坡渗流-应力耦合分析[J]. 桂林理工大学学报,2021,41(2):318 − 324. [LYU Yuhua,LIANG Dexian,WANG Ying,et al. Seepage-stress coupling analysis of unsaturated soil slope under rainfall infiltration[J]. Journal of Guilin University of Technology,2021,41(2):318 − 324. (in Chinese with English abstract)

    LYU Yuhua, LIANG Dexian, WANG Ying, et al. Seepage-stress coupling analysis of unsaturated soil slope under rainfall infiltration[J]. Journal of Guilin University of Technology, 2021, 412): 318324. (in Chinese with English abstract)
    [12] 石爱红,李国庆,丁德民,等. 考虑非饱和土基质吸力的丁家坡滑坡变形机制及稳定性评价[J]. 水文地质工程地质,2022,49(6):141 − 151. [SHI Aihong,LI Guoqing,DING Demin,et al. Deformation mechanism and stability evaluation of Dingjiapo landslide considering the matric suction of unsaturated soil[J]. Hydrogeology & Engineering Geology,2022,49(6):141 − 151. (in Chinese with English abstract)

    SHI Aihong, LI Guoqing, DING Demin, et al. Deformation mechanism and stability evaluation of Dingjiapo landslide considering the matric suction of unsaturated soil[J]. Hydrogeology & Engineering Geology, 2022, 496): 141151. (in Chinese with English abstract)
    [13] 曾立峰,邵龙潭,牛庚,等. 考虑孔隙水微观赋存形态的非饱和粉土有效应力方程及其验证[J]. 水文地质工程地质,2022,49(4):37 − 46. [ZENG Lifeng,SHAO Longtan,NIU Geng,et al. An effective stress equation for unsaturated silt considering the microstructure of pore water and its verification[J]. Hydrogeology & Engineering Geology,2022,49(4):37 − 46. (in Chinese with English abstract)

    ZENG Lifeng, SHAO Longtan, NIU Geng, et al. An effective stress equation for unsaturated silt considering the microstructure of pore water and its verification[J]. Hydrogeology & Engineering Geology, 2022, 494): 3746. (in Chinese with English abstract)
    [14] 刘朋飞,殷跃平,李滨,等. 非饱和黄土干湿循环土水特征曲线试验及渗透系数预测[J]. 中国地质灾害与防治学报,2015,26(4):125 − 129. [LIU Pengfei,YIN Yueping,LI Bin,et al. The tests of soil-water characteristical curve and permeability coefficient prediction of the wetting-drying cycles for unsaturated loess[J]. The Chinese Journal of Geological Hazard and Control,2015,26(4):125 − 129. (in Chinese with English abstract) doi: 10.16031/j.cnki.issn.1003-8035.2015.04.22

    LIU Pengfei, YIN Yueping, LI Bin, et al. The tests of soil-water characteristical curve and permeability coefficient prediction of the wetting-drying cycles for unsaturated loess[J]. The Chinese Journal of Geological Hazard and Control, 2015, 264): 125129. (in Chinese with English abstract) doi: 10.16031/j.cnki.issn.1003-8035.2015.04.22
    [15] 许旭堂,鲜振兴,杨枫,等. 水-力耦合及干湿循环效应对浅层残积土斜坡稳定性的影响[J]. 中国地质灾害与防治学报,2022,33(4):28 − 36. [XU Xutang,XIAN Zhenxing,YANG Feng,et al. Influence of hydraulic-mechanical coupling and dry-wet cycle effect on surficial layer stability of residual soil slopes[J]. The Chinese Journal of Geological Hazard and Control,2022,33(4):28 − 36. (in Chinese with English abstract) doi: 10.16031/j.cnki.issn.1003-8035.202102018

    XU Xutang, XIAN Zhenxing, YANG Feng, et al. Influence of hydraulic-mechanical coupling and dry-wet cycle effect on surficial layer stability of residual soil slopes[J]. The Chinese Journal of Geological Hazard and Control, 2022, 334): 2836. (in Chinese with English abstract) doi: 10.16031/j.cnki.issn.1003-8035.202102018
    [16] 李晓科,王康,畅俊斌. 基于GNSS的滑坡监测预警技术应用——以宝塔区二庄科滑坡为例[J]. 科学技术创新,2022(12):173 − 176. [LI Xiaoke,WANG Kang,CHANG Junbin. Application of landslide monitoring and early warning technology based on GNSS:Taking erzhuangke landslide in Baota district as an example[J]. Scientific and Technological Innovation,2022(12):173 − 176. (in Chinese with English abstract)

    LI Xiaoke, WANG Kang, CHANG Junbin. Application of landslide monitoring and early warning technology based on GNSS: Taking erzhuangke landslide in Baota district as an example[J]. Scientific and Technological Innovation, 202212): 173176. (in Chinese with English abstract)
